RJ-45 Connector Pinouts for the SRX210 Services Gateway Console Port
Figure 13 on page 73 shows the RJ-45 connector pinouts for the console port.

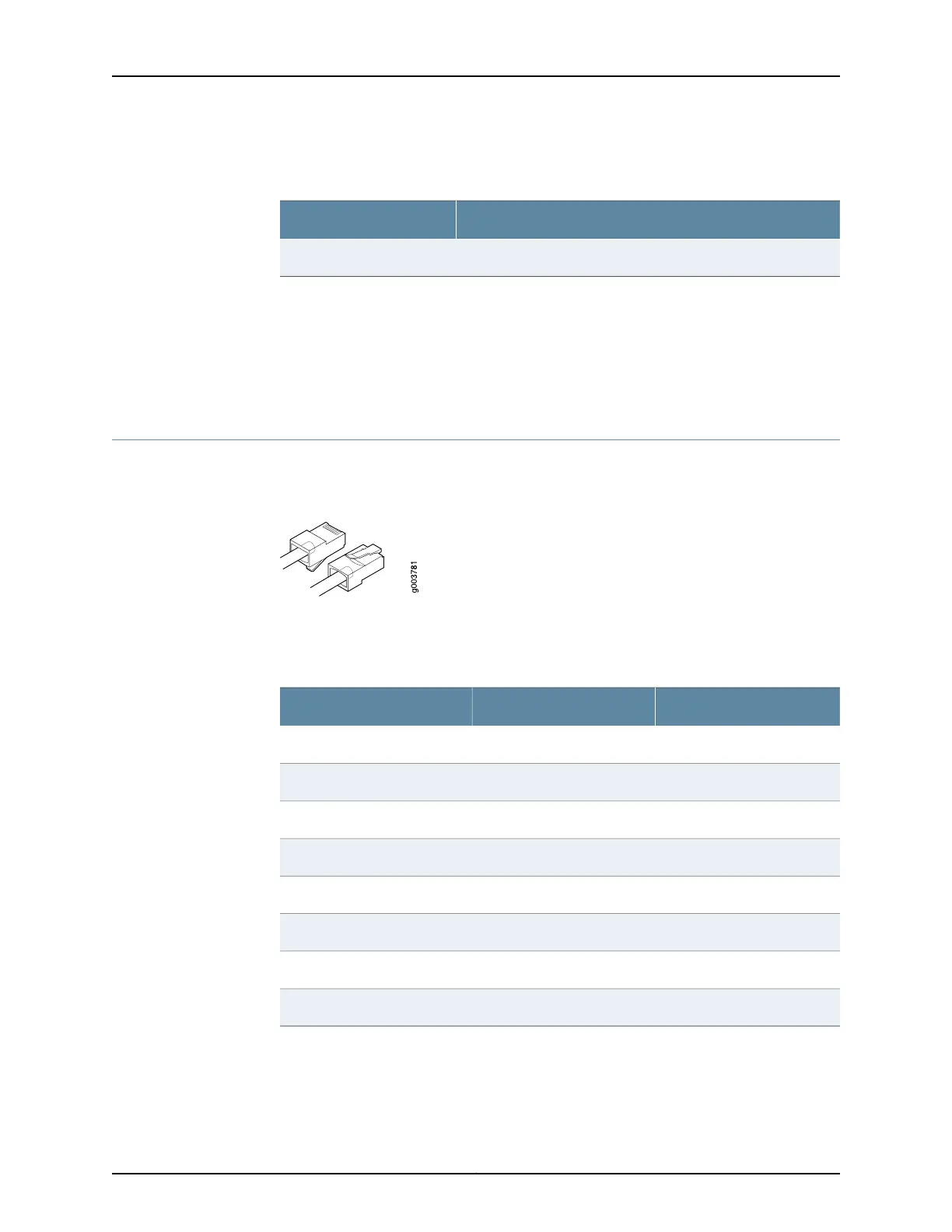

Figure 13: Console Cable Connector
Table 26 on page 73 describes the RJ-45 connector pinouts for the console port.
Table 26: RJ-45 Connector Pinouts for the Services Gateway Console
Port
DescriptionSignalPin
Request to SendRTS1
Data Terminal ReadyDTR2
Transmit DataTXD3
Signal GroundGround4
Signal GroundGround5
Receive DataRXD6
Data Set ReadyDSR/DCD7
Clear to SendCTS8
