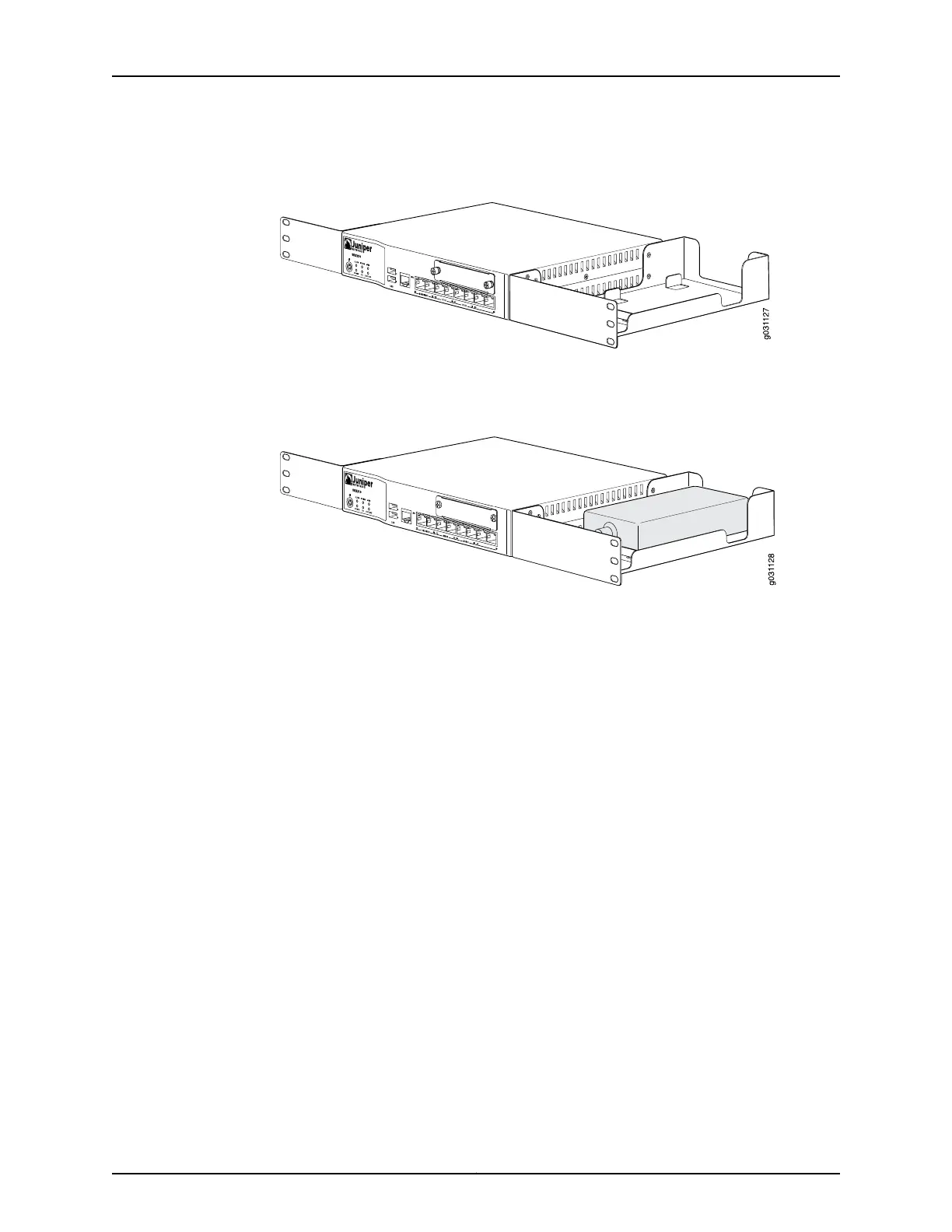

Figure 17: SRX210 Services Gateway Rack Installation — Securing Mounting
Brackets and Power Supply Adapter Tray
3. Place the power supply adapter in the tray as shown in Figure 18 on page 97.
Figure 18: SRX210 Services Gateway Rack Installation — Positioning the
Power Supply Adapter Tray
4. Have one person grasp the sides of the device, lift it, and position it in the rack.
5. Align the bottom hole in each mounting bracket with a hole in each rack rail as shown
in Figure 19 on page 98, making sure the chassis is level.
