Installing the SRX210 Services Gateway on a Desk
Follow these guidelines when installing the device on a desk:
•
You can install the SRX210 Services Gateway on a desk, table, or other level surface.
•
The device is shipped with the rubber feet attached. The rubber feet are necessary to
stabilize the device on the desk.
•
You can install the device in a horizontal or vertical position.
•
The vertical position requires the vertical installation kit, which consists of a vertical
installation stand with the rubber feet attached.
NOTE: The desk-mounting kit is not shipped with the device and must be
ordered separately.
To install the device in a horizontal position:
The horizontal position is the standard installation position and does not require the
vertical installation kit.
1. Make sure that the rubber feet are attached to the chassis.
2. Place the device on a desk with the Juniper Networks logo embossed on the top cover
facing up.
To install the device in a vertical position:
1. Place the device on a flat and level surface with the Juniper Networks logo embossed
on the top cover facing up.
2. Attach the vertical stand to the right side of the chassis using the specified screws as
shown in Figure 20 on page 99.

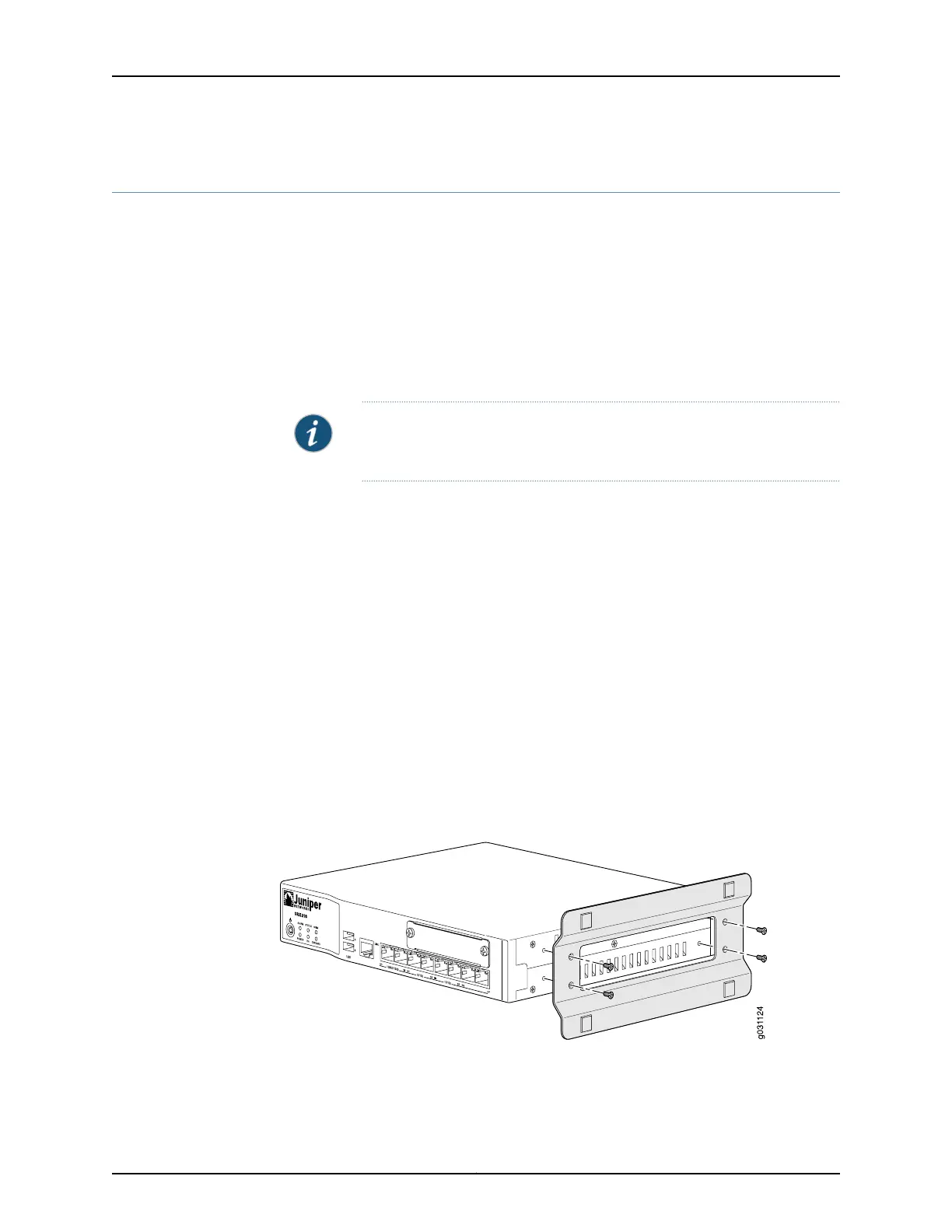

Figure 20: SRX210 Services Gateway Desk Installation — Attaching the
Vertical Stand
3. Place the chassis vertically on the desk with the stand resting on the desk as shown
in Figure 21 on page 100.
