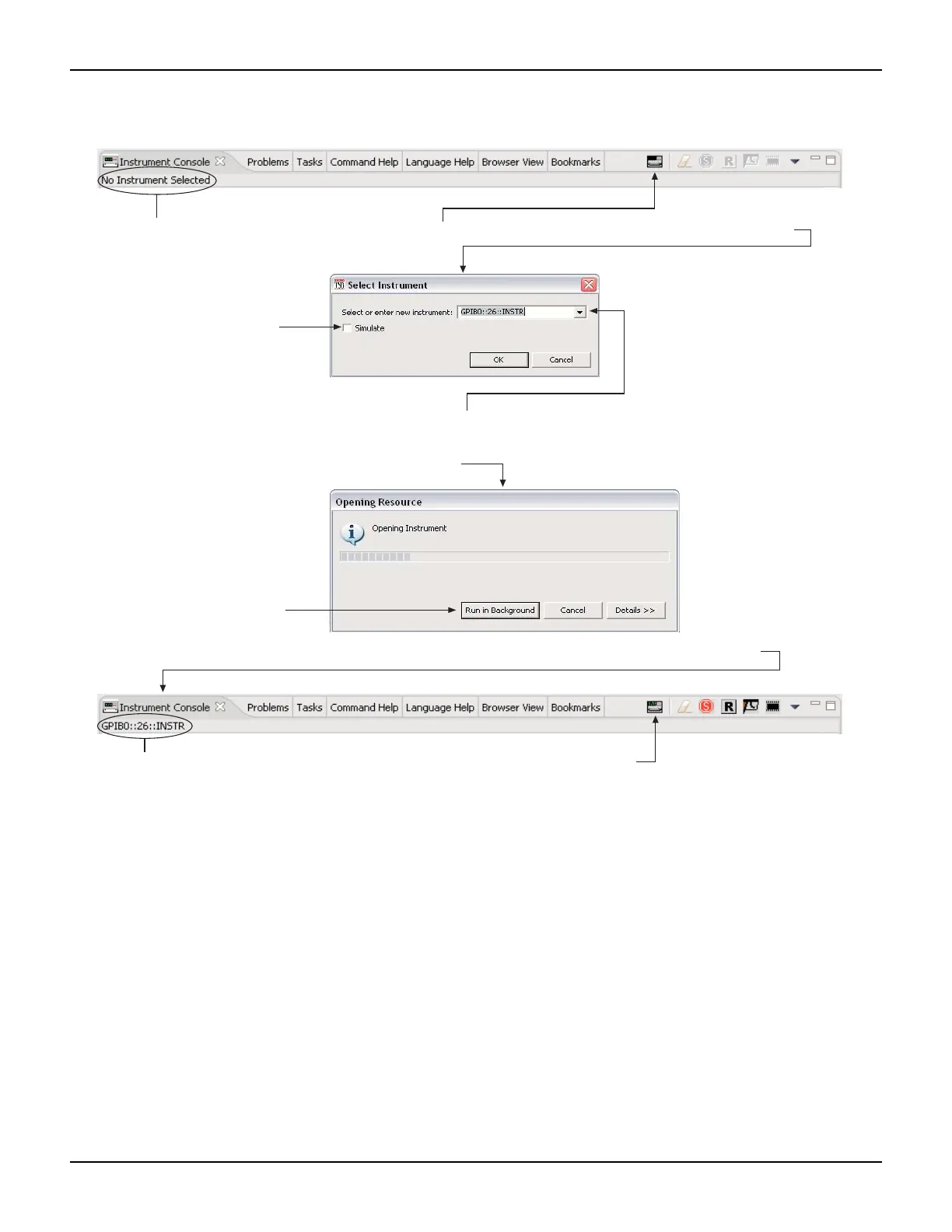

Figure 13-2
Opening and closing communications
Message indicates that
communication to a
SourceMeter has not
been established.
B) Use the drop-down menu to select the communications interface
being used by the SourceMeter and click OK.
While communications are being opened, the Opening Resource
window is displayed.
A) Click the Open Instrument icon to display the Select Instrument window.
Click to hide this dialog
box while communications
are being established.
Click to simulate
communications.
C) After communications open, the Instrument Console becomes active.
Message indicates that communications
(GPIB, address 26) to the SourceMeter
are open.
Click to close communications to the
SourceMeter. The Instrument Console
window becomes inactive.
