Keithley 2600a series User Manual

2600AS-901-01 Rev. B / September 2008 Return to Section Topics 13-23
Series 2600A System SourceMeter® Instruments Reference Manual Section 13: Test Script Builder (TSB)

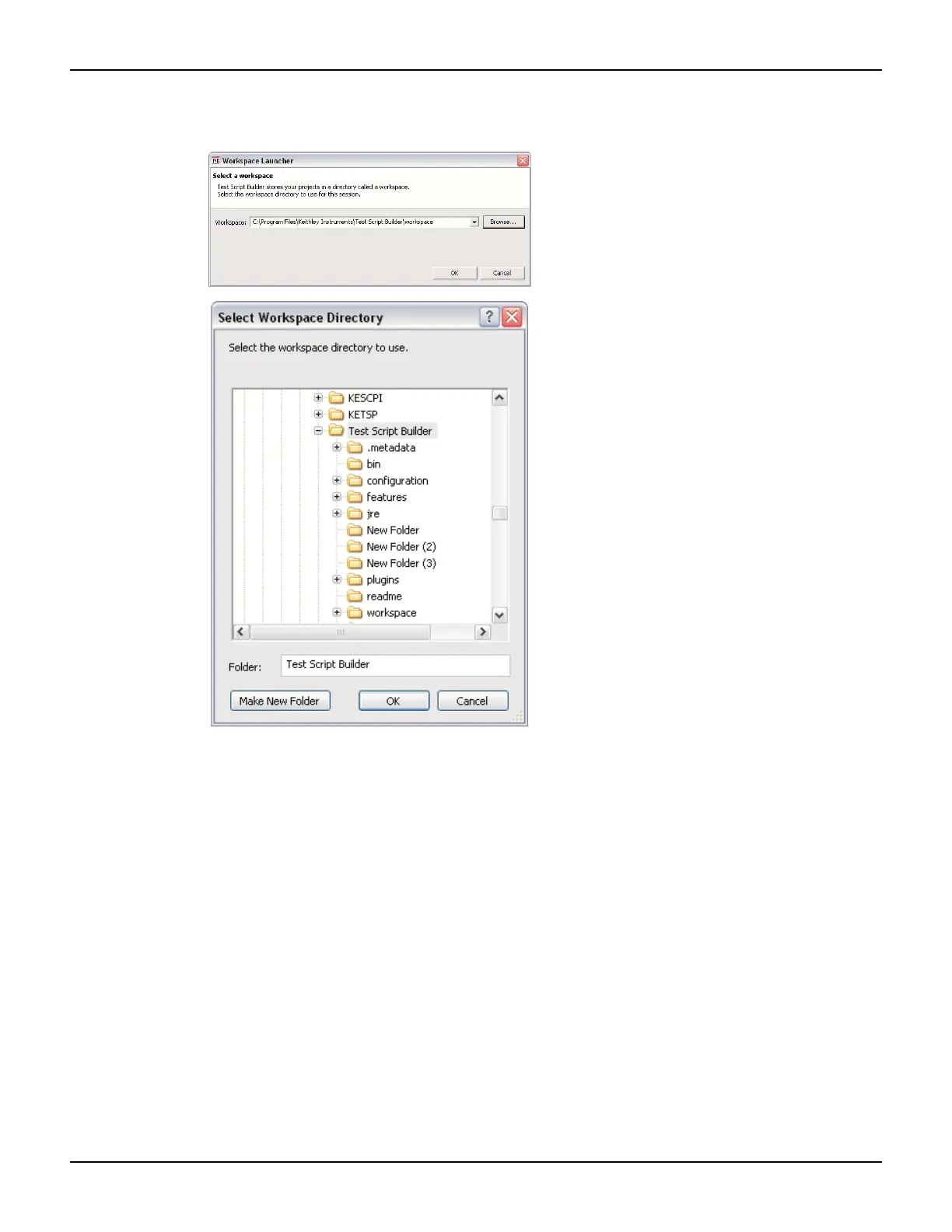

Figure 13-17
Workspace Launcher and Select Workspace Directory
Importing a project from another workspace
A project (along with its script files) can be imported from another workspace folder that resides in
your file system. This is explained in
Figure 13-18, which imports a project named
KI2602Demo_ASimpleTest. In Step C, use the Browser to locate the project that you wish to
import.
After clicking Finish in the Import window, the project will appear in the Project Navigator of the
Test Script Builder.
A)
B)
