ESP32 Starter Kit

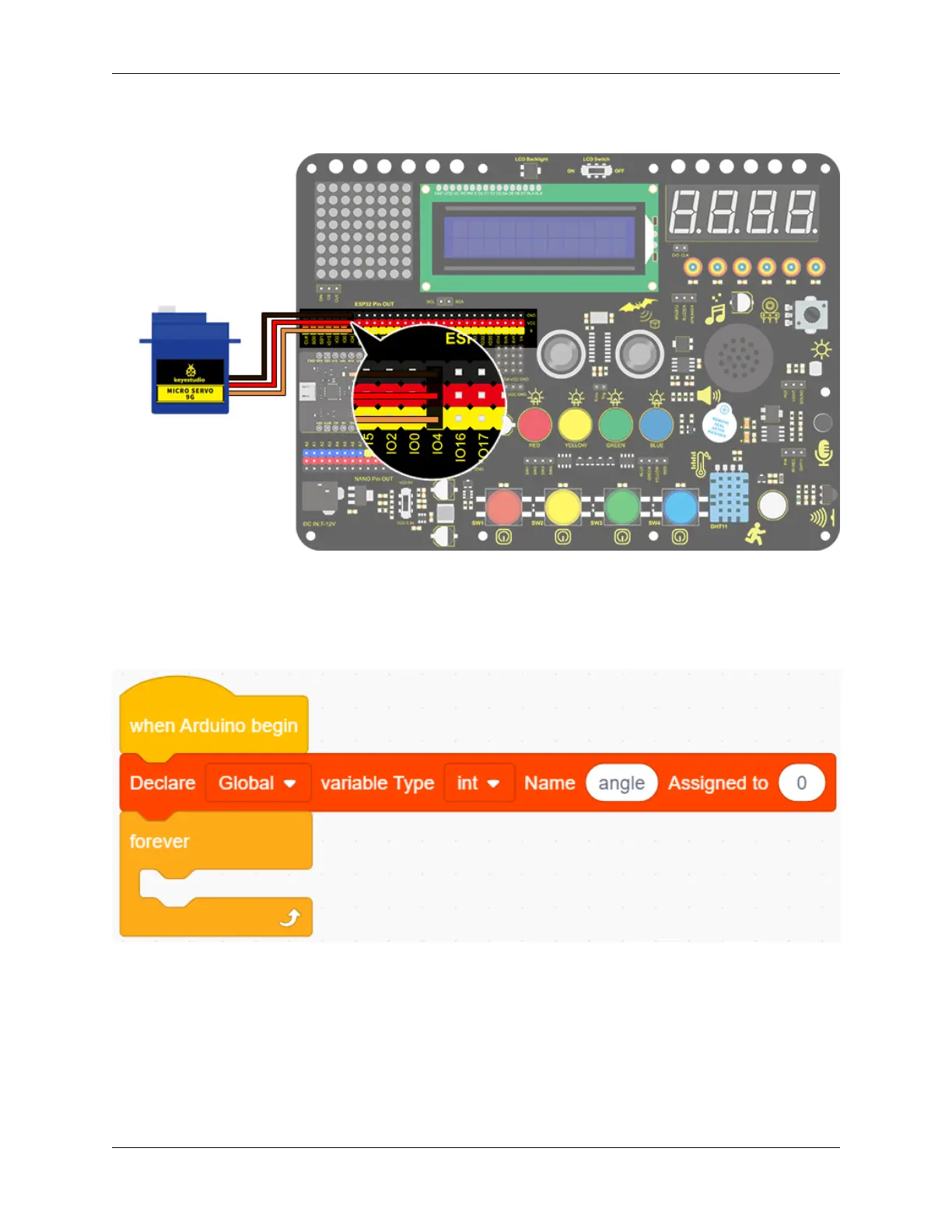

3. Wiring Diagram

4. Test Code

1.Drag the two basic blocks and put a “variable” block between them. Set the variable type to int, name to angle, and

assign 0 as its initial value.

2. Servo gradually rotates from 0° to 180°:

Add a repeat block and set the repeat times to 180(180 angles). Drag a “change variable” and a “servo” block and put

them in the repeat one. Name the variable “angle” and select the mode “++”. Set Servo PIN to IO4 and degree to the

named variable. Don’t forget to delay 15s.

224 Chapter 9. Scratch Tutorial
