Keyestudio ESP32 - 4. Test Code

ESP32 Starter Kit

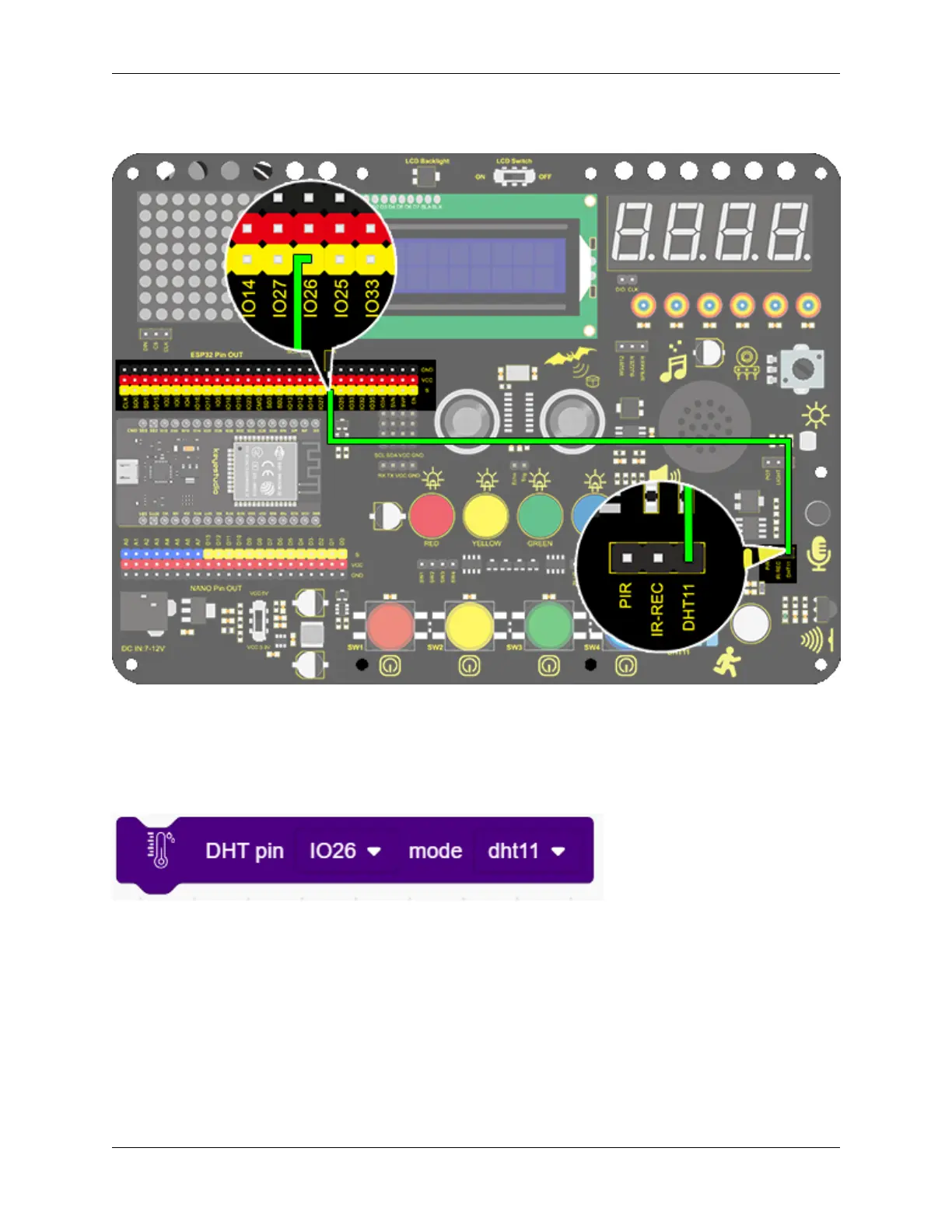

3. Wiring Diagram
4. Test Code
1. Drag two basic blocks. Add the serial baud rate module and set the baud rate to 9600.
2. Drag the DHT module from “Temperature and humidity” and set the pin to IO26, mode to dht11.
3. Add serial print module with no-wrap, and set the print to “RH:”, then follow the steps below, and add a delay
of 1s.
Complete Code:
9.2. Scratch Project 293
