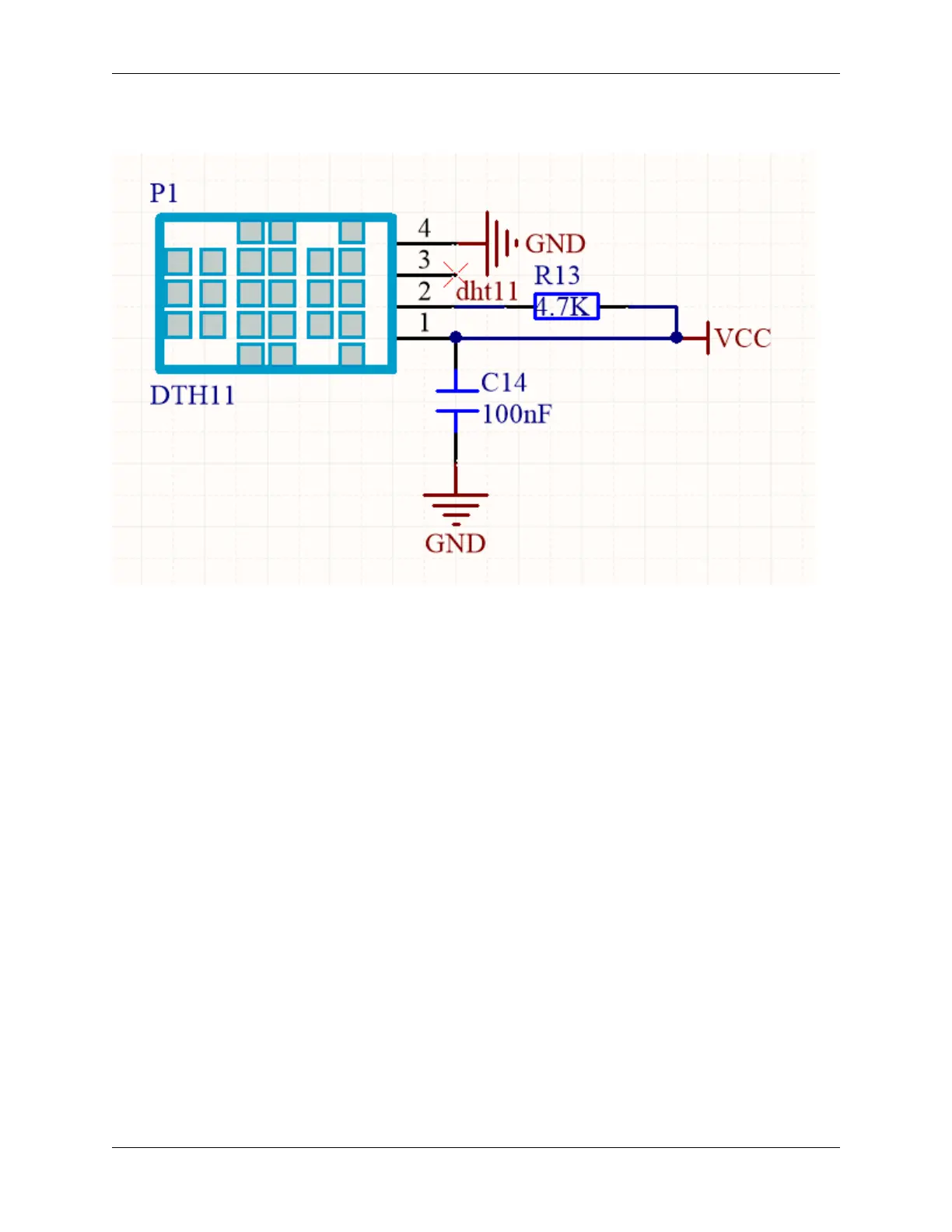

Keyestudio ESP32 - 3. Wiring Diagram

ESP32 Starter Kit
2. Working Principle
Related settings in DHT11 is provided by manufacturers, so you only need to orderly read and process data according
to its sequence chart.
Besides, the relevant codes are packaged in our libraries, which is convenient for you to set pins and read values.
