ESP32 Starter Kit

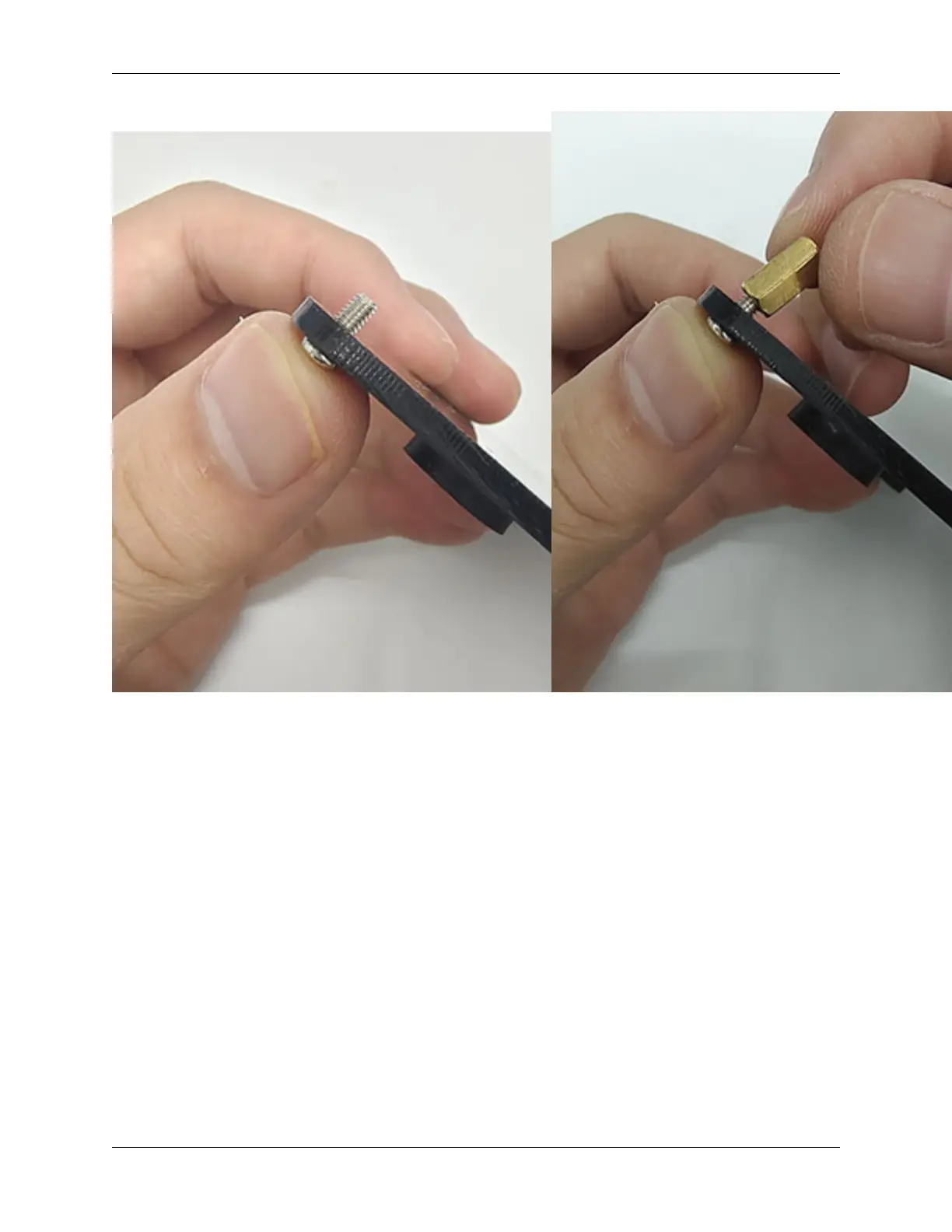

Step 4: Align the holes on the expansion board with copper pillars. Do note whether the middle two holes are aligned.
If not, rotate the board to 180°. After adjustment, tighten the board with screws in place.
