Keysight 16860 Series Portable Logic Analyzers Service Guide 101
Troubleshooting 5
8 Adjust sampling positions:

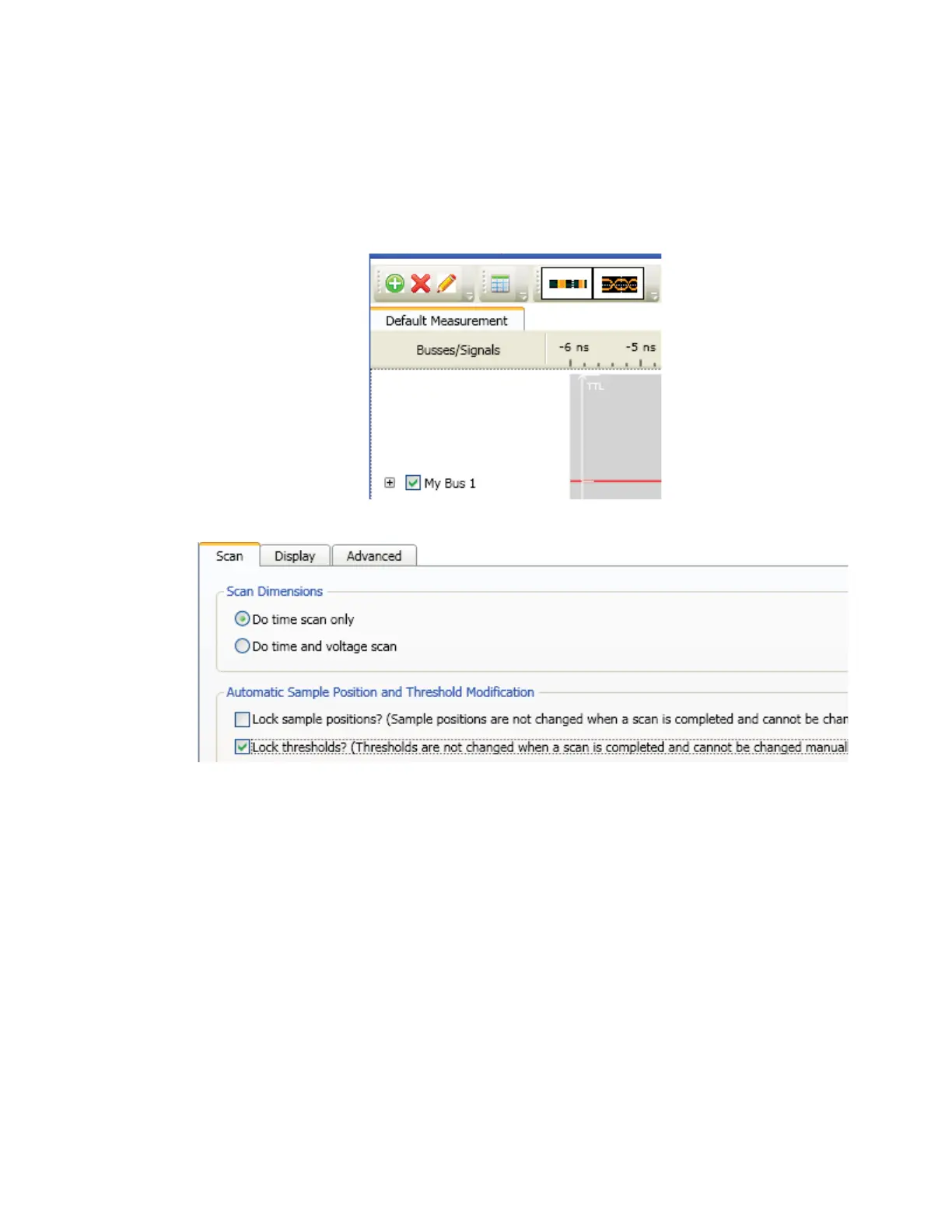

a Click the Eye Scan: Thresholds and Sample Positions button. The Eyescan - Sample Positions and
Threshold Settings dialog will appear.
b In the “Buses/Signals” section of the Eyescan - Sample Positions and Threshold Settings
dialog, make sure the check box next to “My Bus 1” is checked.
c Click Edit, select the Do time scan only option as the scan dimension and then select the Lock
Thresholds checkbox.
d Select the Run This Measurement button in the Eyescan - Sample Positions and Threshold Settings
dialog.
y
