Keysight 16860 Series Portable Logic Analyzer Service Guide 37
Testing 16860 Performance 3

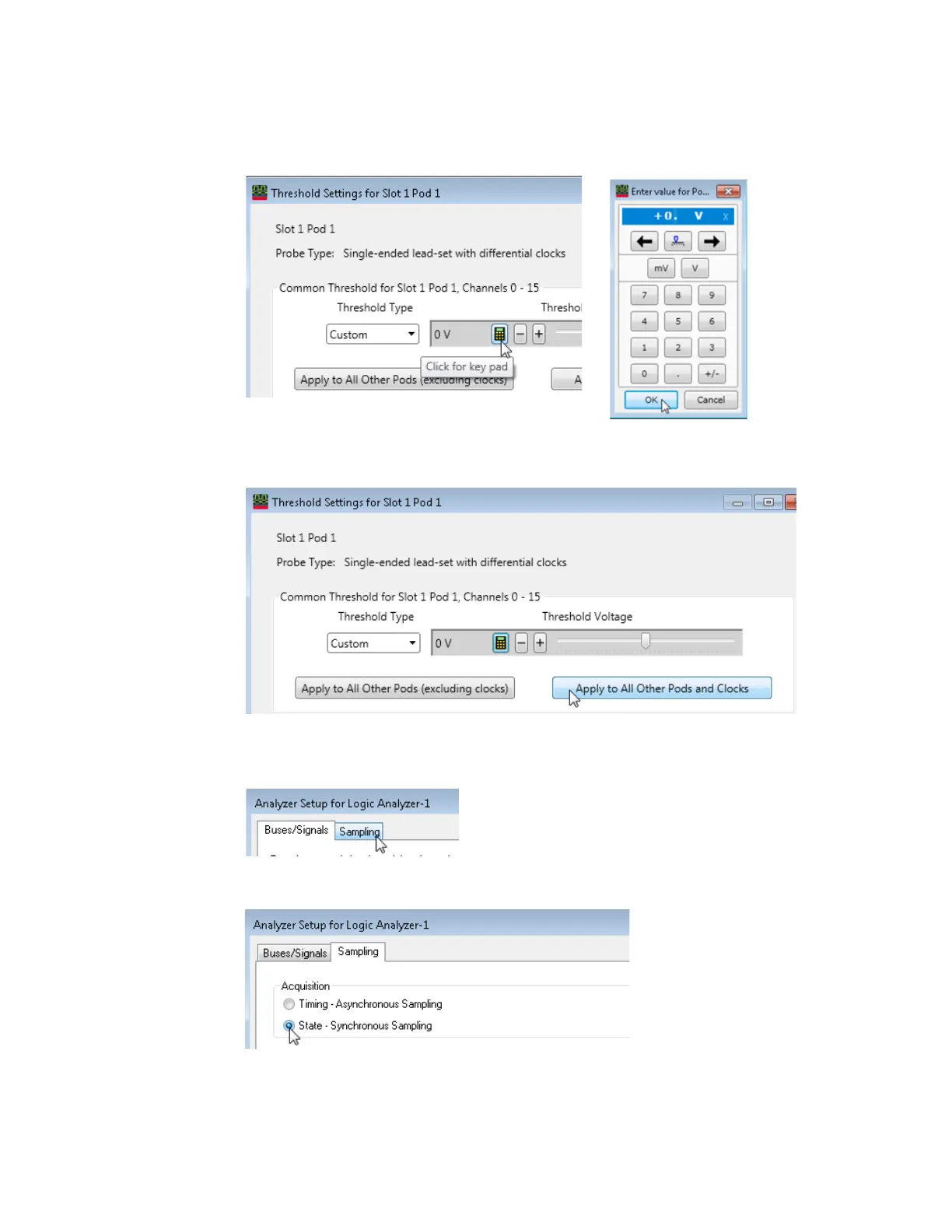

6 Apply this to all Pods and Clocks by clicking the Apply to All Other Pods and Clocks button.
7Click Done to close the Threshold dialog.
8 Select the Sampling tab.
9In the Sampling dialog, set the Acquisition mode to State - Synchronous Sampling.
10 Set the State Options to Multiple Clocks.
