Keysight 16860 Series Portable Logic Analyzer Service Guide 47
Testing 16860 Performance 3

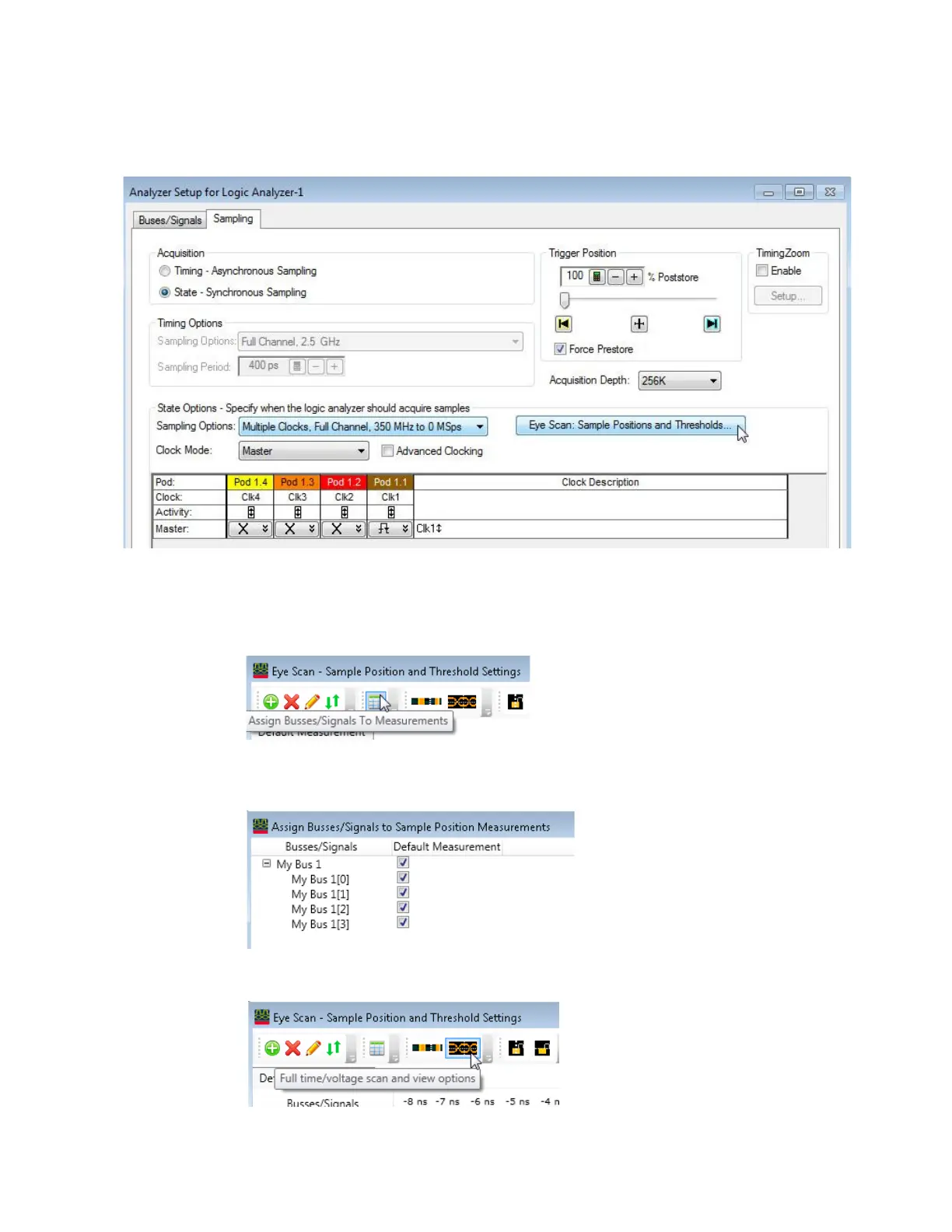

3 Select the Assign Busses/Signals.
4 In the Buses/Signals section of the dialog, ensure that the check box next to My Bus 1 is checked
and the 4 data bits 0-3. Click OK.
5Select Full time/voltage scan.
