Keysight E5071C ENA - Removable Hard Disk Assembly Removal (Obsolete); Tools Required; Removal Procedure

Keysight E5071C ENA Network Analyzers 205
Replacement Procedure
Removable Hard Disk Assembly Removal (Obsolete)
Removable Hard Disk Assembly Removal (Obsolete)
Tools Required
• TORX screwdriver, T10, T15, and T20
•Flat edge screwdriver
Removal Procedure
Refer to Figure 6-3 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 203.
Step 2. Remove the front panel as described in “Front Panel Removal” on page 204.
Step 3. Disconnect the two cables (item 1).
Step 4. Remove the three TORX T10 screws (item 2) fastening the removable hard
disk assembly.
Step 5. Be careful to release the hook from chassis (item3) and lift the removable
hard disk assembly.
Step 6. Remove the four TORX T10 screws (item 4) fastening the bracket.

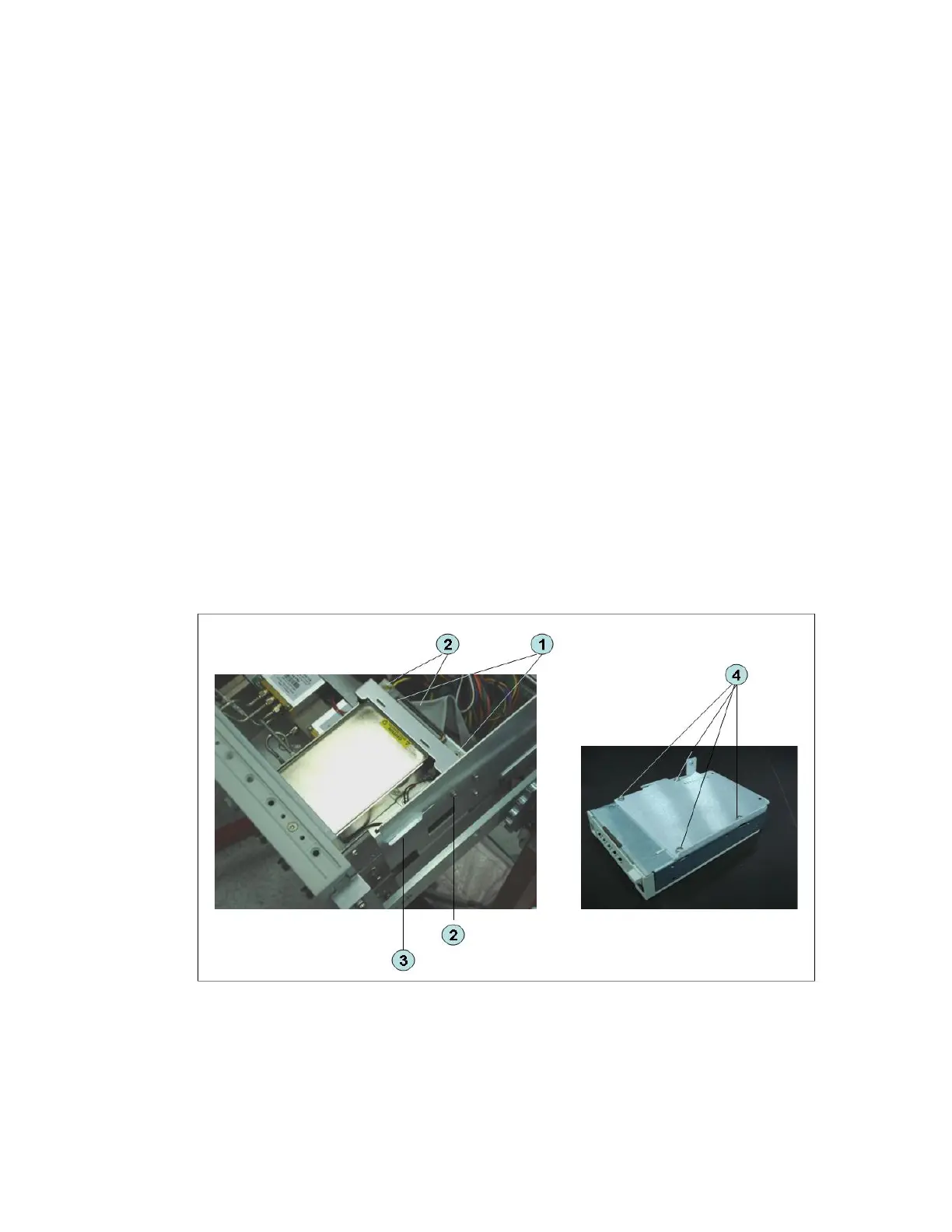

Figure 6-3 Removable Hard Disk Assembly Replacement (Obsolete)
