System features
l
Save and recall up to 10 instrument states in non-volatile memory
l
LAN and USB programming interfaces are built in; GPIB (IEEE-488) is optional
l
Front panel menu setup for LAN and GPIBparameters
l
Compliant with 1.5 LXI Device Specification 2016, including a built-in Web server
l
SCPI (Standard Commands for Programmable Instruments) compatibility
Regenerative Operation
Whenever the MPS is sinking current, either by rapidly down-programming the output, or by
discharging an energy source such as a battery, the unit will direct the excess power back to the ac
mains. You cannot disable the regenerative operation.
During regenerative operation, the power factor of 0.99 is maintained. Sine wave current distortion is
less than 2% at full load. This ensures the quality of the ac signal that is returned to the ac mains.
When an ac mains dropout is sensed, galvanic relays disconnect the ac mains and the unit shuts down.
Refer to AC Mains Considerations for additional information.

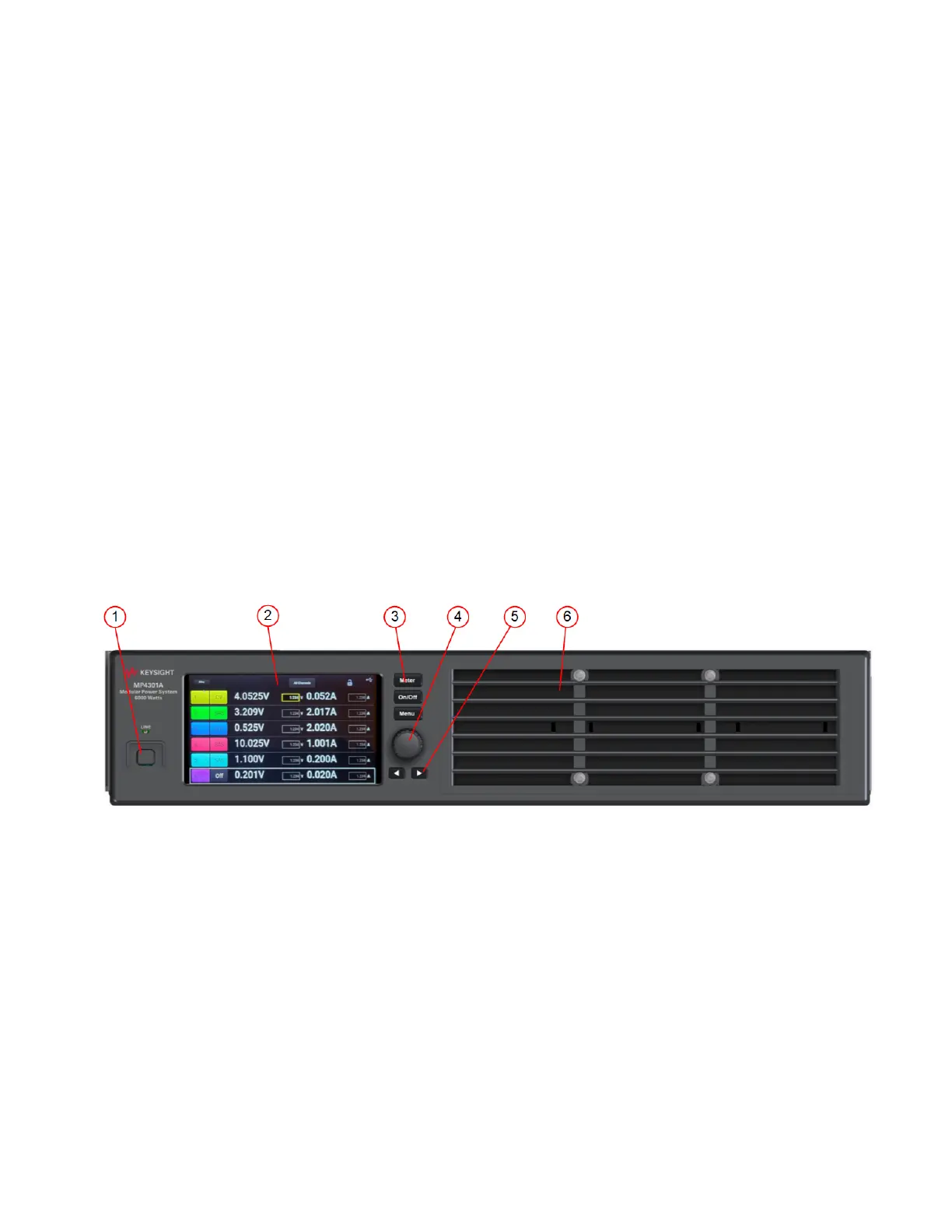

Front Panel at a Glance
1. On/Off switch - Push this switch to turn the instrument on or off.
2. Display - Turns off after 1 hour of inactivity. Touch the display to restore it.
3. Function keys - Select metering, mode, and command functions.
4. Rotary knob- Scrolls through the display selections. Push to make a selection.
5. Navigation keys - Move horizontally across the selections on the display.
6. Air inlets - Do not block front panel air inlets.
