Multiple Load Connections
SHOCK HAZARD Turn off ac power before making rear panel connections.

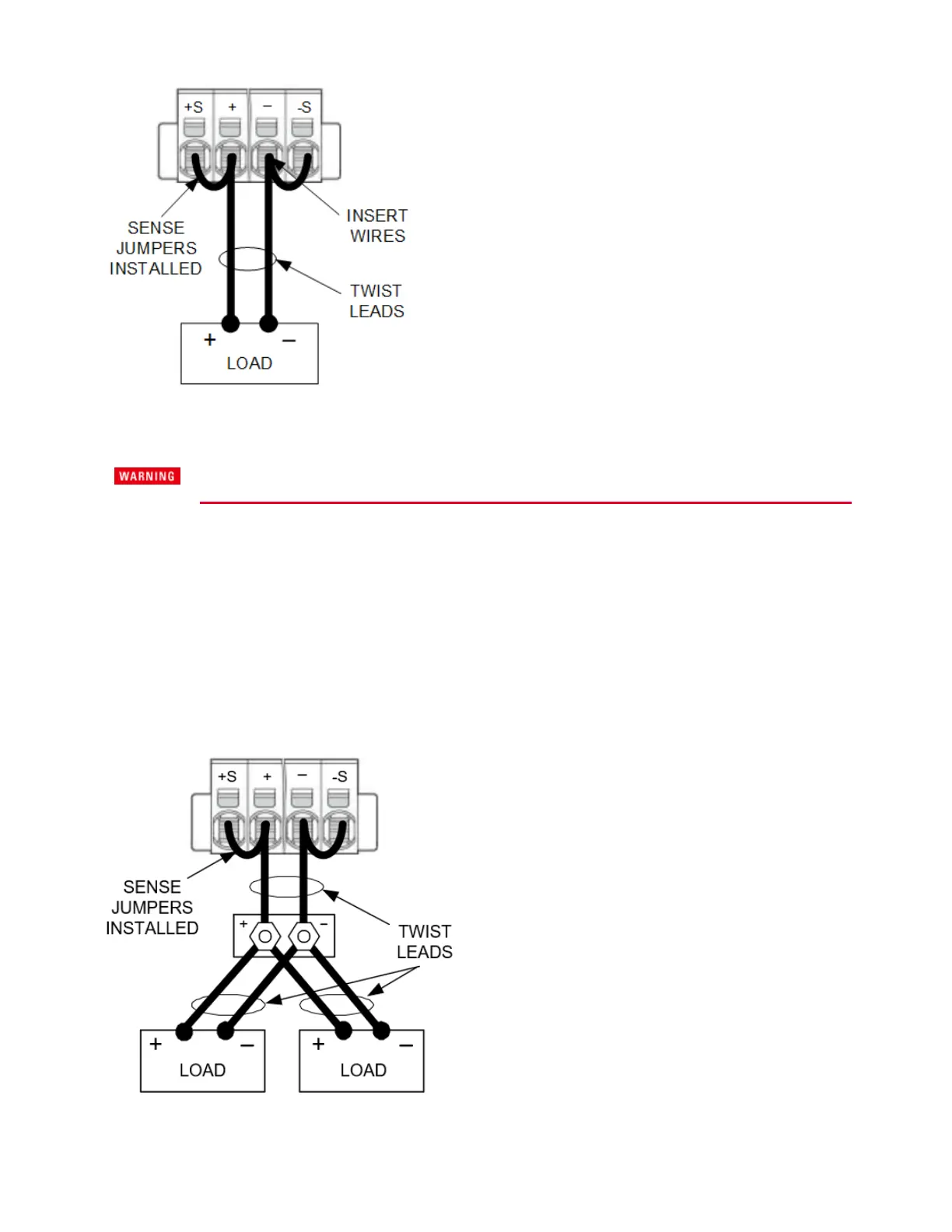

If you are using local sensing and are connecting multiple loads to one output, connect only one set of
wires to the output terminals as shown in the following figure. Use remote distribution terminals as the
connection point for both the output and the load wires. Connect each load to the distribution
terminals separately.
Keep the wire-pairs as short as possible and twist or bundle each wire pair to reduce lead inductance
and noise pickup. The goal is to minimize the loop area or physical space between the + and - output
leads from the output to the loads. Remote voltage sensing may be recommended when using remote
distribution terminals. Sense either at the remote distribution terminals or, if one load is more sensitive
than the others, directly at the critical load.
Keysight MP4300 Series Operating and Service Guide 47
2 Installing the Instrument
