Keysight MP4300 Series User Manual

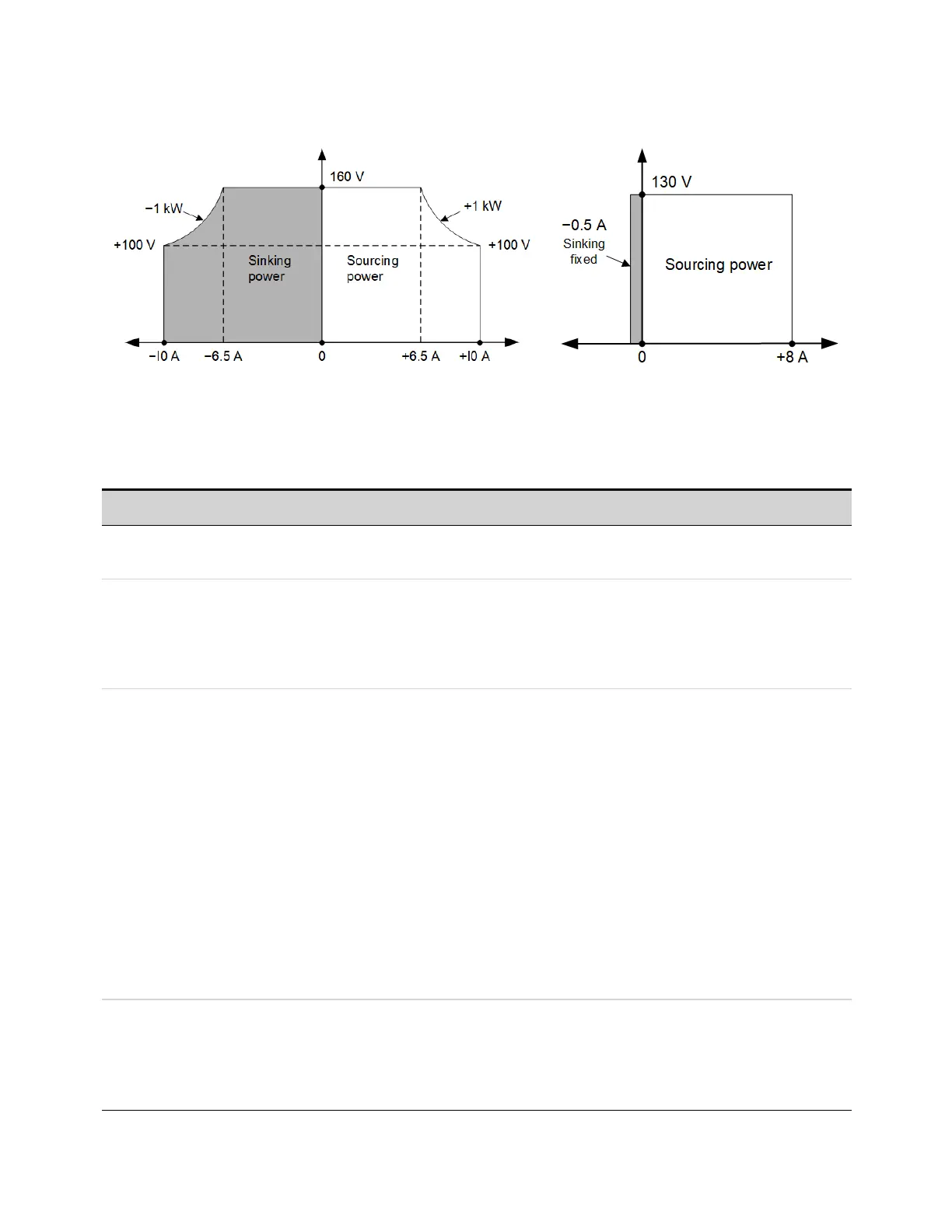

Power Module Output Quadrants
MP4361A
MP4362A
Mainframe Characteristics
Common Characteristic Keysight MP4301A & MP4302A
Command Processing Time ≤ 1 ms from receipt of command to start of output change.
Applies for simple output settings commands.
Computer Interfaces
LXI version:
LAN:
USB:
GPIB (Option GPB):
1.5 LXI Device Specification 2016
10 Mb, 100 Mb, 1 Gb LAN
USB 2.0 (USB-TMC488 protocol)
SCPI - 1995, IEEE 488.2 compliant interface
Digital Port
Max voltage rating:
Pins 1 & 2 as FLT:
Pins 1-7 as outputs:
Pins 1-7 as inputs:
Pin 8:
+16.5 VDC/- 5 VDC between pins
Maximum low-level output voltage = 0.5 V @ 4 mA
Maximum low-level sink current = 4 mA
Typical high-level leakage current = 1 mA @ 16.5 VDC
Maximum low-level output voltage = 0.5 V @ 4 mA;
1 V @ 50 mA; 1.75 V @ 100 mA
Maximum low-level sink current = 100 mA
Typical high-level leakage current = 0.8 mA @ 16.5 VDC
Maximum low-level input voltage = 0.8 V
Minimum high-level input voltage = 2 V
Typical low-level current = 2 mA @ 0 V (internal 2.2k pull-up)
Typical high-level leakage current = 0.12 mA @ 16.5 VDC
Pin 8 is common (internally connected to chassis ground)
Acoustic statement
(European Machinery Directive)
Acoustic noise emission
LpA <70 dB at Operator position:
LpA <70 dB at Bystander position
LpA <55 dB at Idle fan speed
Normal operation mode per ISO 7779
