3.11 IQ Waveform Measurement
Shows an RF envelope (magnitude) window and a metrics table showing the
measured values for the mean power and peak-to-mean power.
3.11.1.2 I/Q Waveform
Windows: "I/Q Waveform" on page 1513
Shows a window with I and Q voltages vs time. SCPI commands can also be used to
query the I/Q pairs while in this View.
3.11.2 Windows
The following windows are available in this measurement.
–
"RF Envelope" on page 1512
–
"Metrics" on page 1513
–
"I/Q Waveform" on page 1513
3.11.2.1 RF Envelope

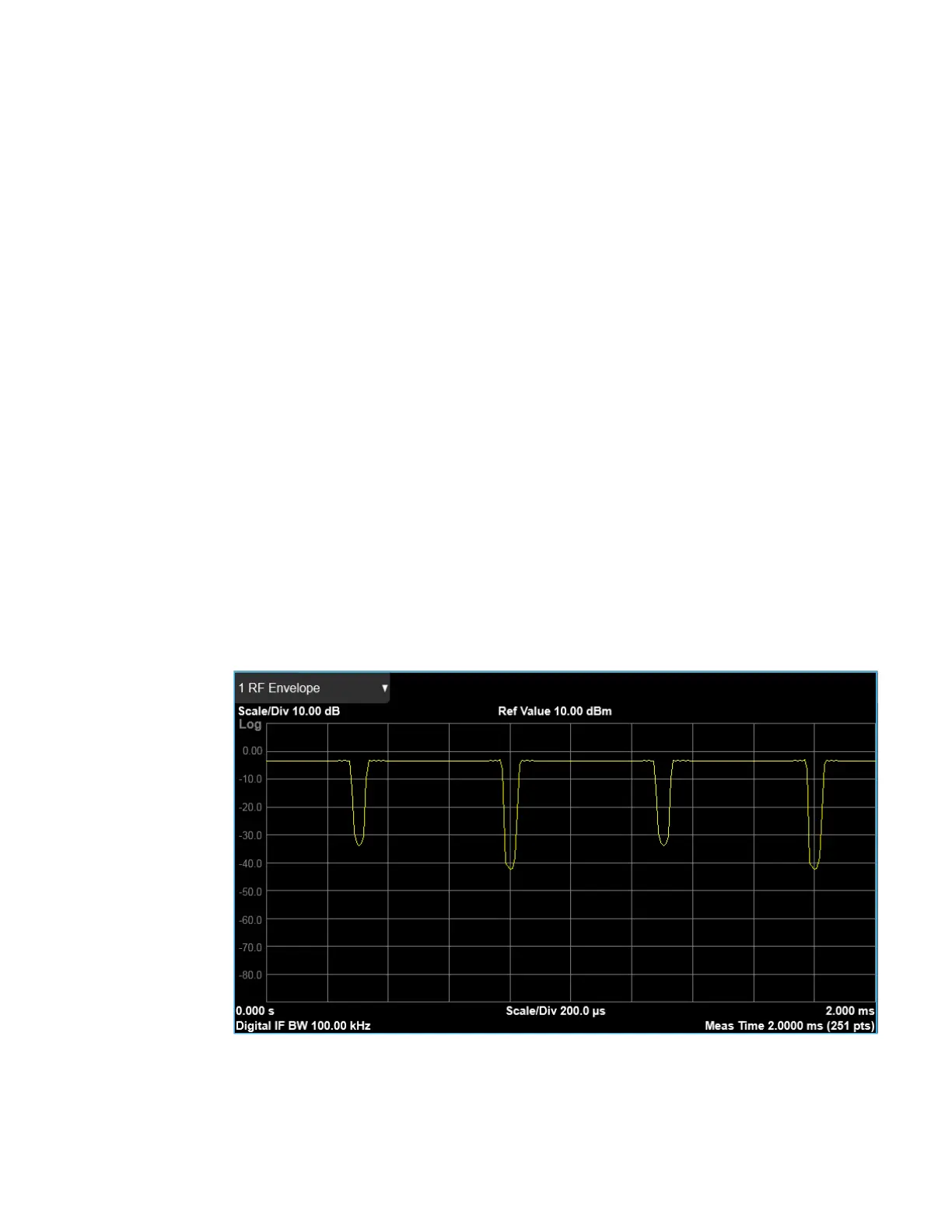

Displays an amplitude-vs time (time domain) graph of the envelope (magnitude) of
the RF waveform:
