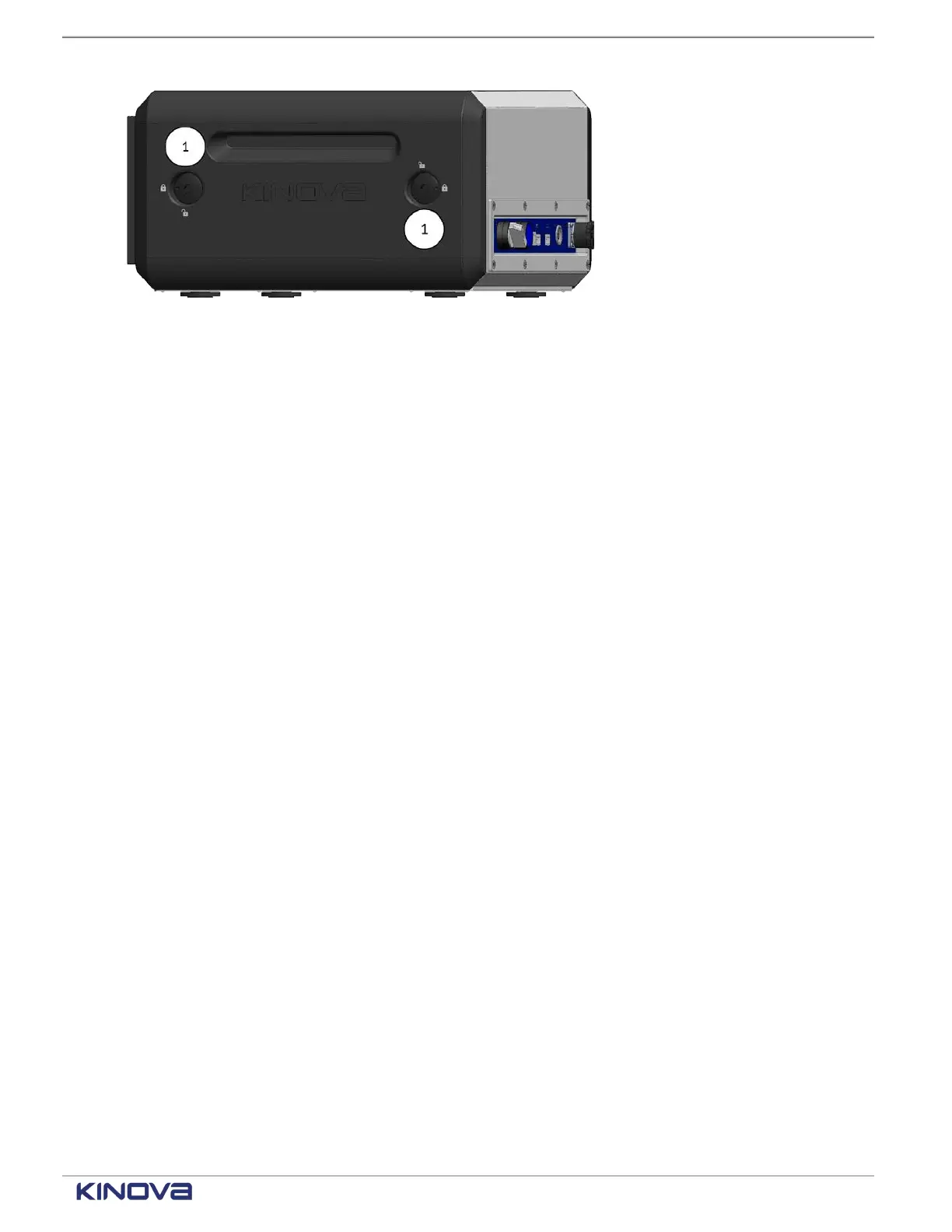

Figure 24: Controller side panel
1 Camlocks; Use 8 mm hex key to unlock and lock
On the inside of the panel is a mapping of the location of each input and output. See Figure 19:
Map of input and output connectors is on the inside of the side panel on page 25.
