Kodak DirectView CR 850 - Extraction Bar Sensor S9

DIAGNOSTICS Checkout Procedures
10DEC05
DG4825-1
Page
134 of 180
10 Check the status of the LED DS25 on the MOTION SYSTEM CONTROL BOARD A1:
11 Do the checkout for the MOTION SYSTEM CONTROL BOARD A1.
EXTRACTION BAR SENSOR S9
Caution
Dangerous Voltage

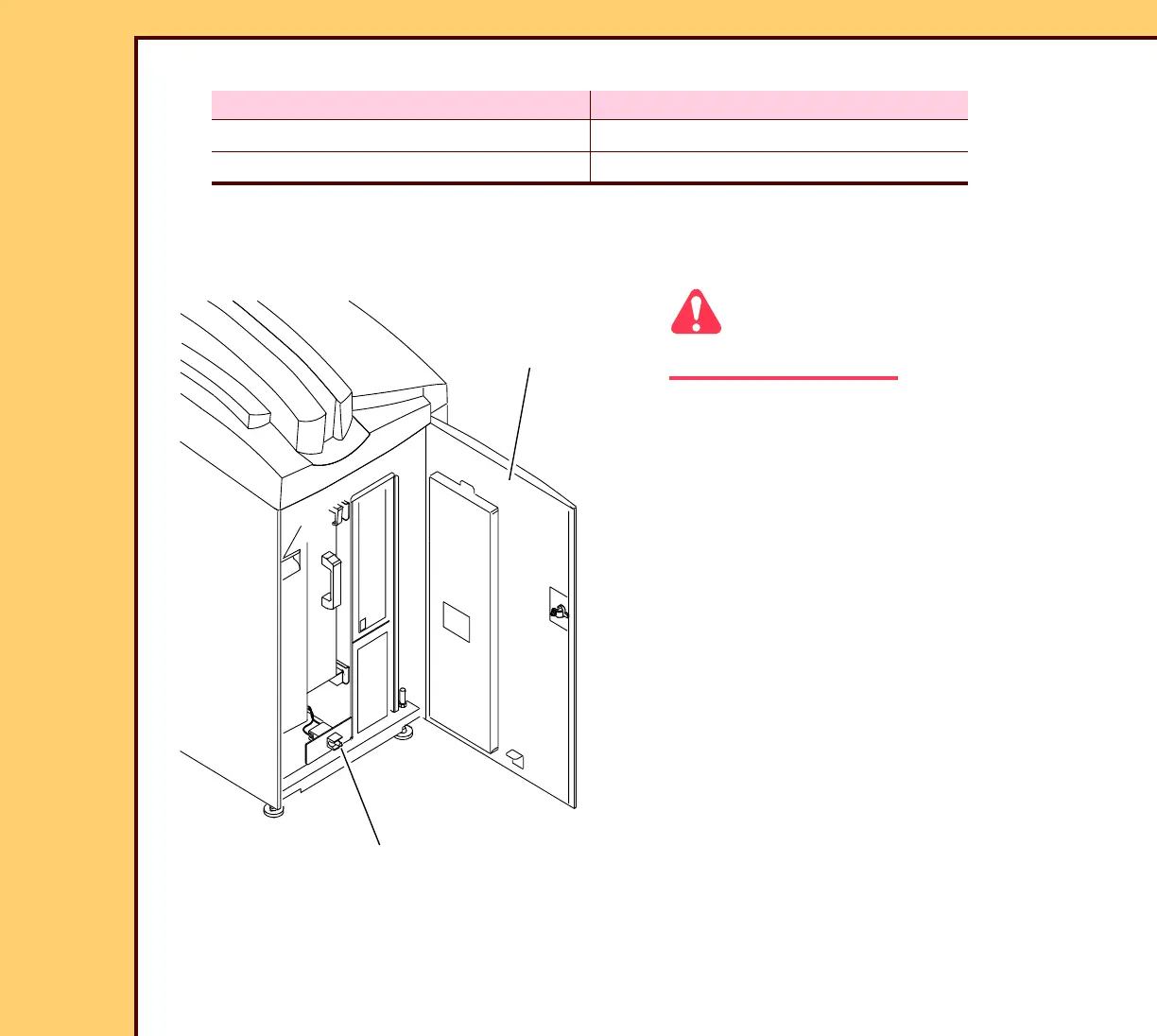

1 Open the FRONT DOOR to actuate the
INTERLOCK SWITCH S8.
2 Install the INTERLOCK KEY into the
INTERLOCK SWITCH S8.
FRONT DOOR LED DS25
Open Not illuminated
Closed Illuminated
H194_0041GC
INTERLOCK SWITCH S8
FRONT DOOR
H194_0041GCB
