DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

53 of 180

Clearing the Error Logs

1 On the “System Service Diagnostic” screen, touch [Clear Error Log].

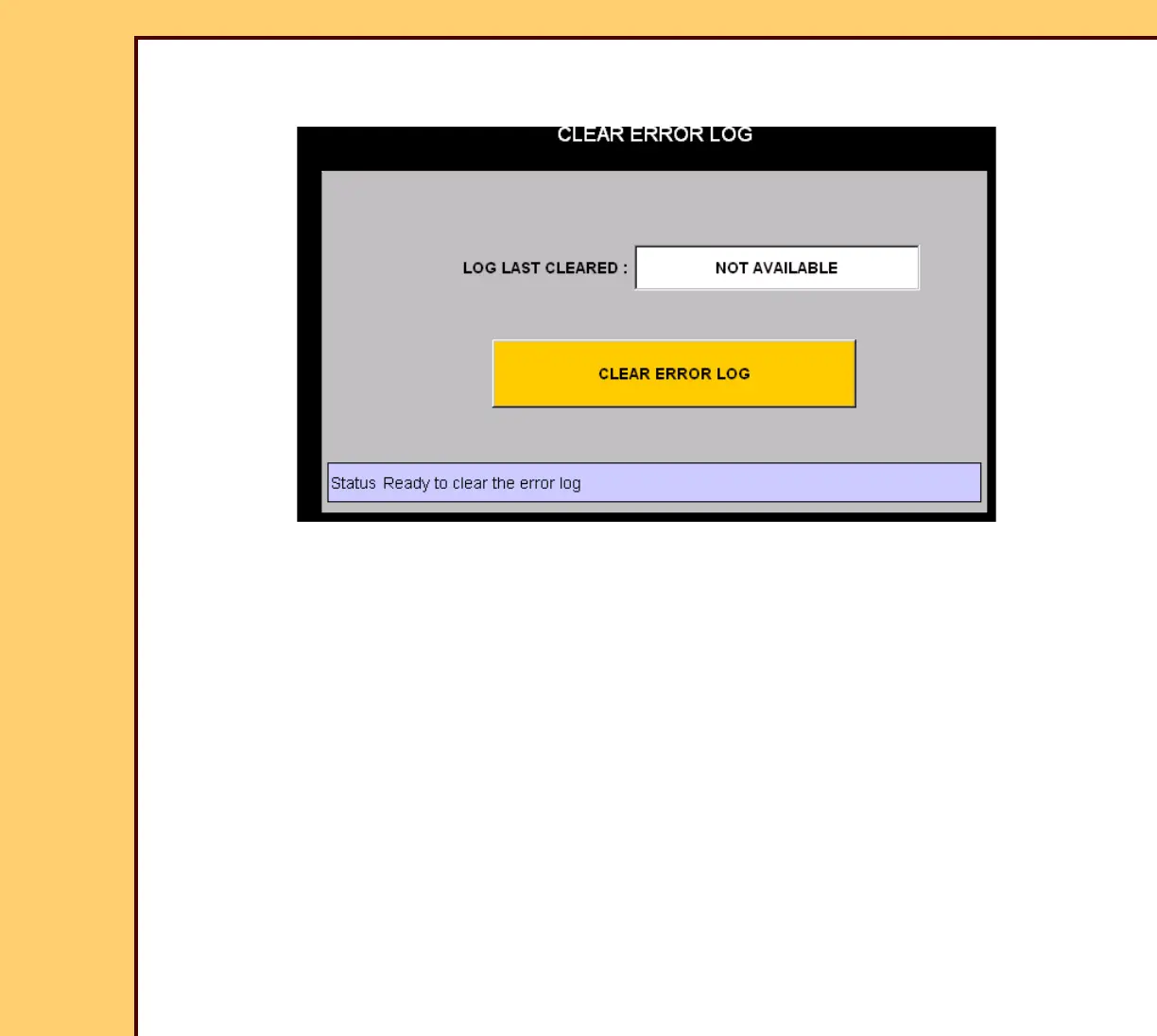

2 Touch [CLEAR ERROR LOG].
