DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

52 of 180

Storing the Error Logs on a Disk

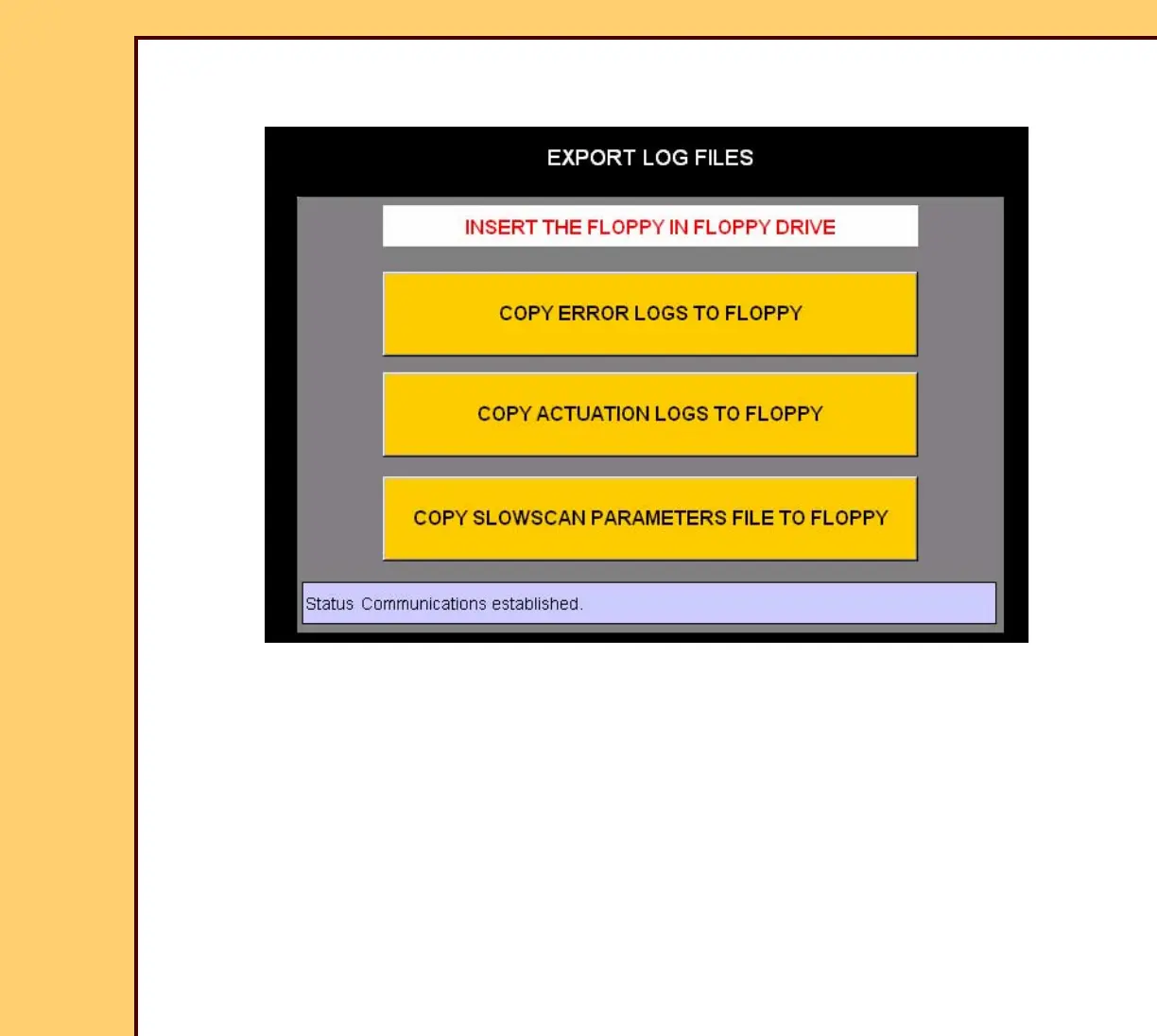

1 On the “System Service Diagnostic” screen, touch [Export Log Files].

2 Insert a disk into the DRIVE.

3 Touch either:

• [COPY ERROR LOGS TO FLOPPY],

• [COPY ACTUATION LOGS TO FLOPPY], or

• [COPY SLOWSCAN PARAMETERS FILE TO FLOPPY]
