DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

43 of 180

Transport

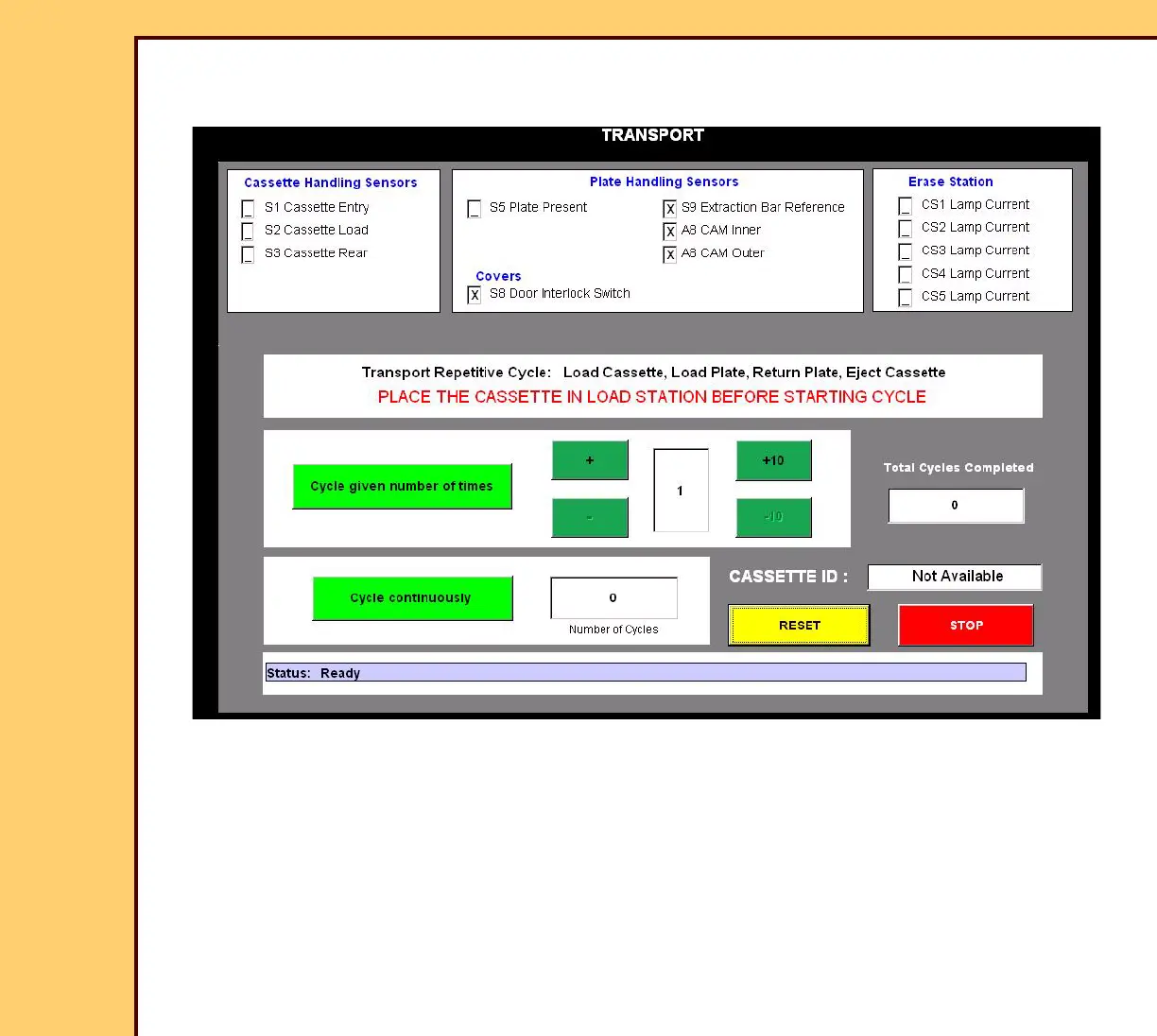

1 On the “System Service Diagnostic” screen, touch [Transport].

2 Insert a CASSETTE into the CR 825/850 SYSTEM.

3 Touch either:

• [Cycle given number of times], or

• [Cycle continuously]

4 For the “Number of Cycles”, type: 10
