DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

47 of 180

MCPU Self Test

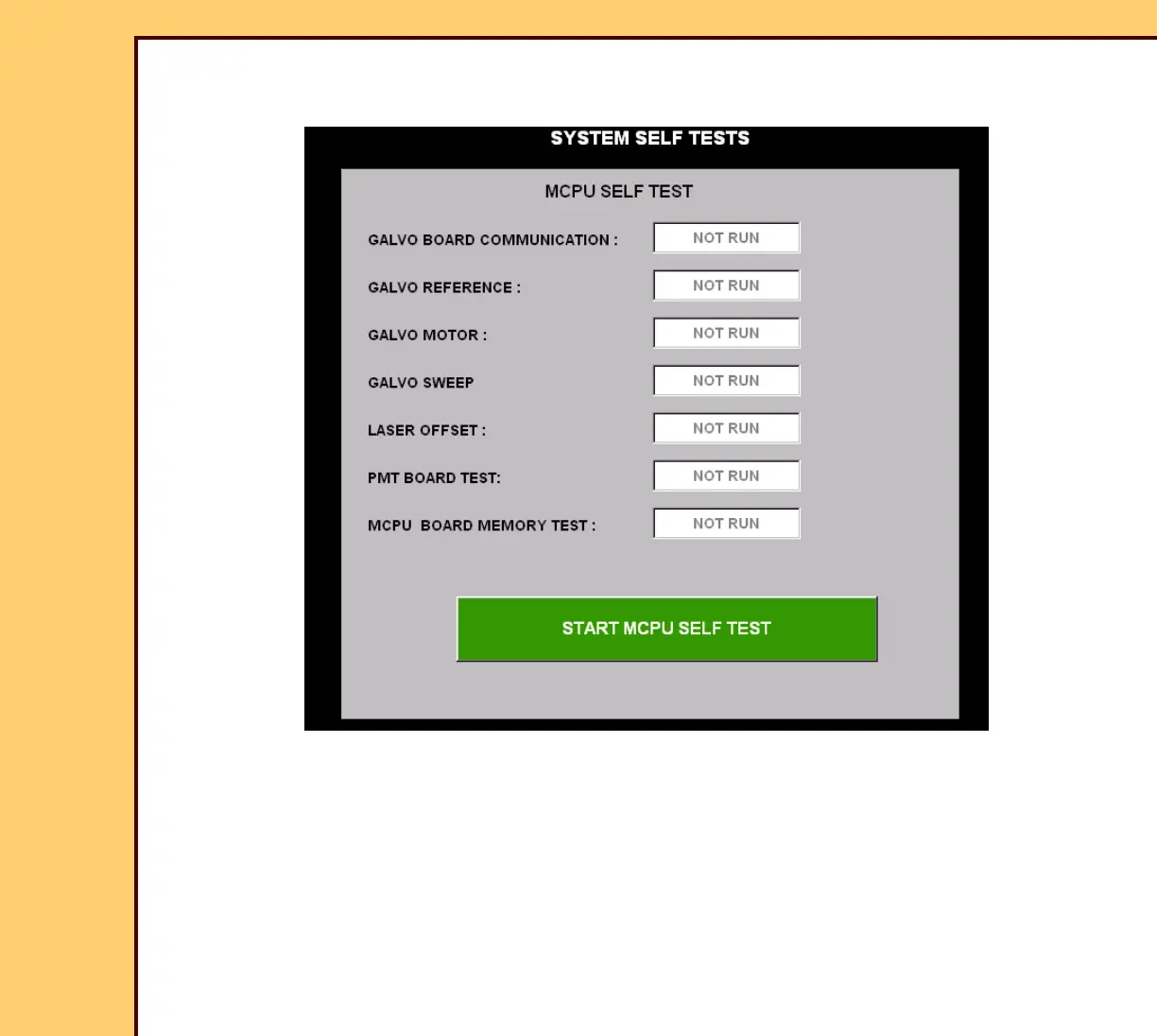

1 On the “System Service Diagnostic” screen, touch [System Self Test].

2 Touch [START MCPU SELF TEST].

3 Wait approximately 20 seconds for the test to complete.
