DIAGNOSTICS Checkout Procedures
10DEC05
DG4825-1
Page
136 of 180
HOOKS on the EXTRACTION BAR
1 Do the adjustment for the
EXTRACTION BAR HOME POSITION.
2 Check that the HOOKS extend from the
EXTRACTION BAR when you press
down on the HOOK YOKE AY.
3 If you cannot press down on the HOOK
YOKE AY, check:
• HOOKS on the EXTRACTION BAR
are not bent
• LEVER for binds
• BEARING for binds
4 If the HOOKS do not appear when you
press down, check:
• HOOKS on the EXTRACTION BAR
are not bent
• LEVER for binds
H177_3025GC
H177_3025GCB

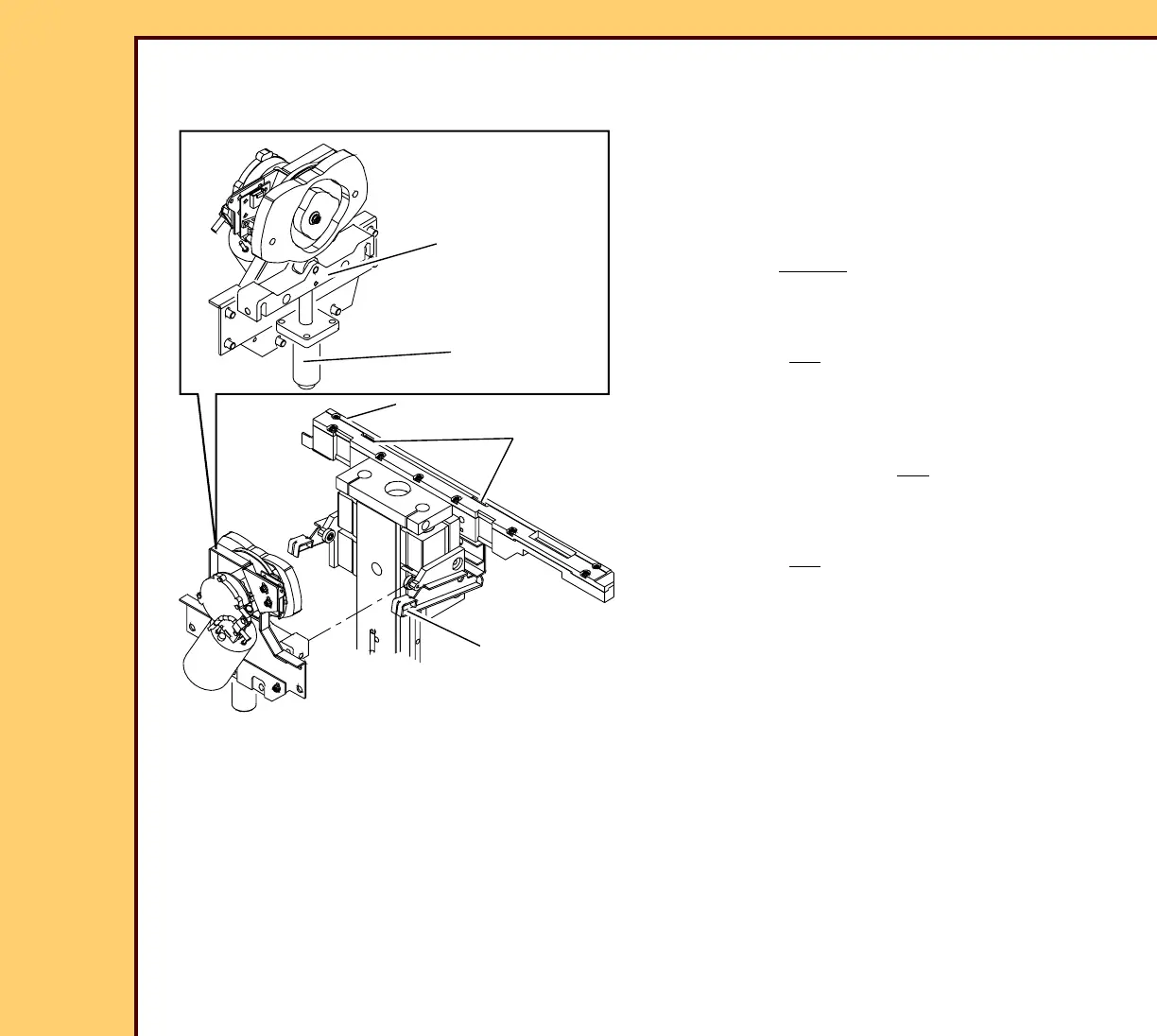

HOOK YOKE AY
LEVER
EXTRACTION BAR
HOOKS
BEARING
