DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

40 of 180

3 Check that “PASSED” displays for both PMT 1 and PMT 2.

4 If one of the PMTs displays “FAILED”, install a new PMT. Use PMTs and COLLECTOR

AY.

5 If both PMTS display “FAILED”, check the connections between:

• PMT BOARD

• DAS BOARD

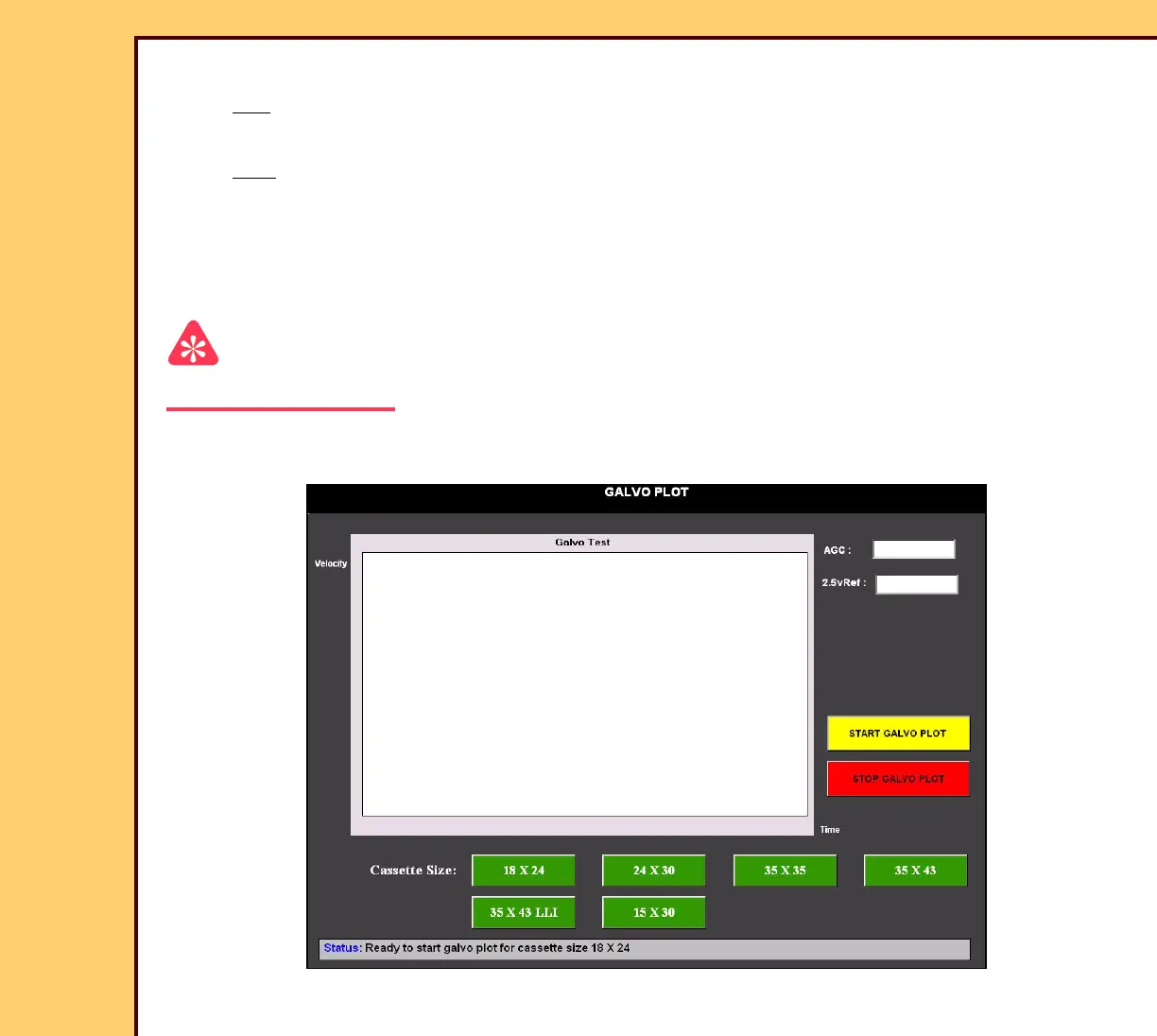

GALVO PLOT

Important

The “Galvo Plot” screen has more “Cassette Size” options with Software Version ≥ 4.1.

1 On the “System Service Diagnostic” screen, touch [GALVO PLOT].

2 Touch [START GALVO PLOT].
