DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

48 of 180

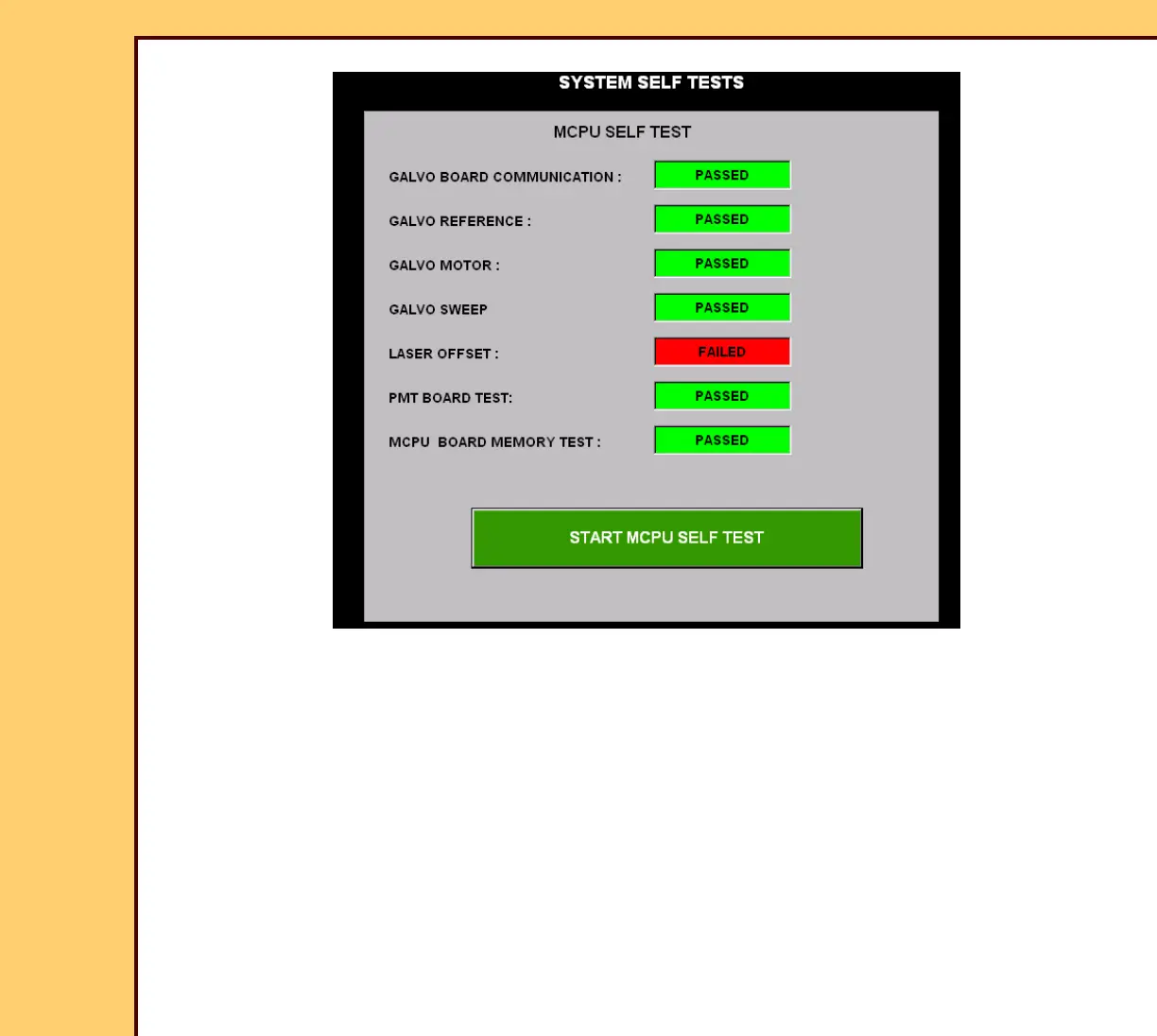

4 Observe the results for each test.

5 If any of the tests display “FAILED”, check the error logs. See Checking the Error Logs.

6 See the Error Codes to determine the possible cause and action for the problem.
