Step 7: Connect power and cables to the main board

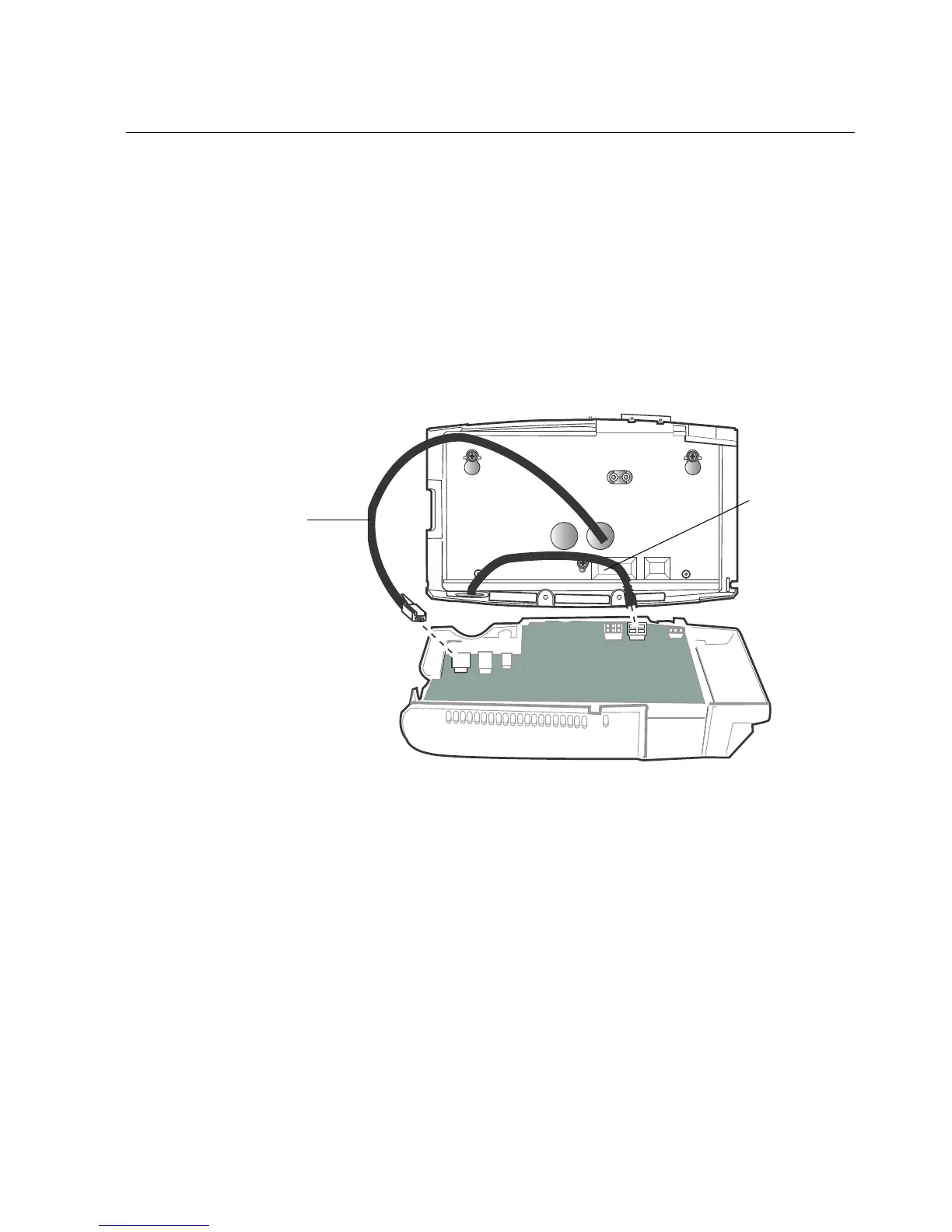

The following illustration shows the Ethernet cable and external wall transformer
cord connected to the main board.
If the Ethernet cable is the source of the power, you do not need the external wall
transformer cable.
1. Connect the Ethernet cable to the main board. If you are using Power-over-
Ethernet (PoE) or PoE Plus cable, the unit will turn on.
2. Attach the Ethernet strain relief clip.
