13 WHEELS, TIRES 102
101997-10

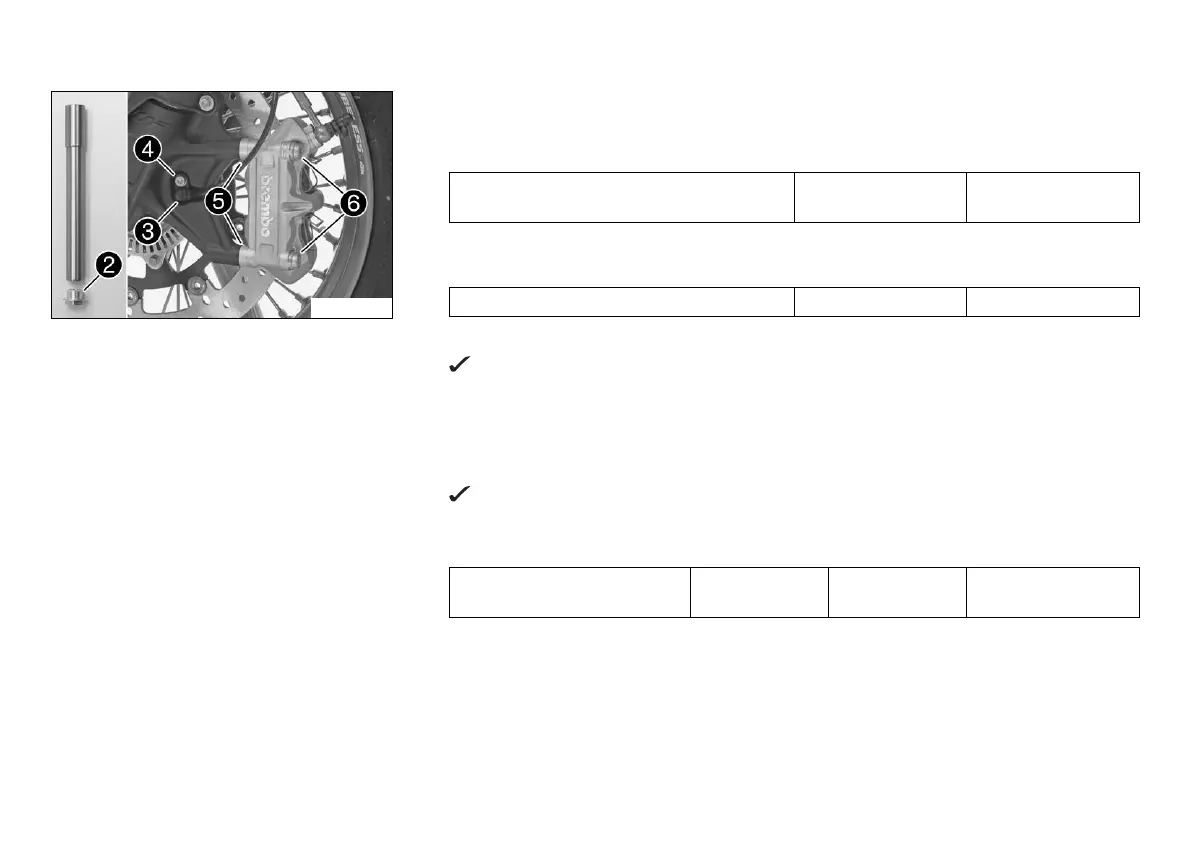

Lift the front wheel into the fork, position it, and insert the wheel spindle.
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
Position the wheel speed sensor
in the drill hole. Mount and tighten screw
.
Guideline
Screw, wheel speed sensor M6 6 Nm (4.4 lbf ft)
Position the brake caliper on the brake disc.
The brake linings are correctly positioned.
Position spacers
. Mount screws
but do not tighten yet.
Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point. Fix the hand brake lever in the activated posi-
tion.
The brake caliper straightens.
Tighten screws
.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
Remove the fixation of the hand brake lever.
