KTM 690 SMC R User Manual

15 COOLING SYSTEM 136
102015-10
–

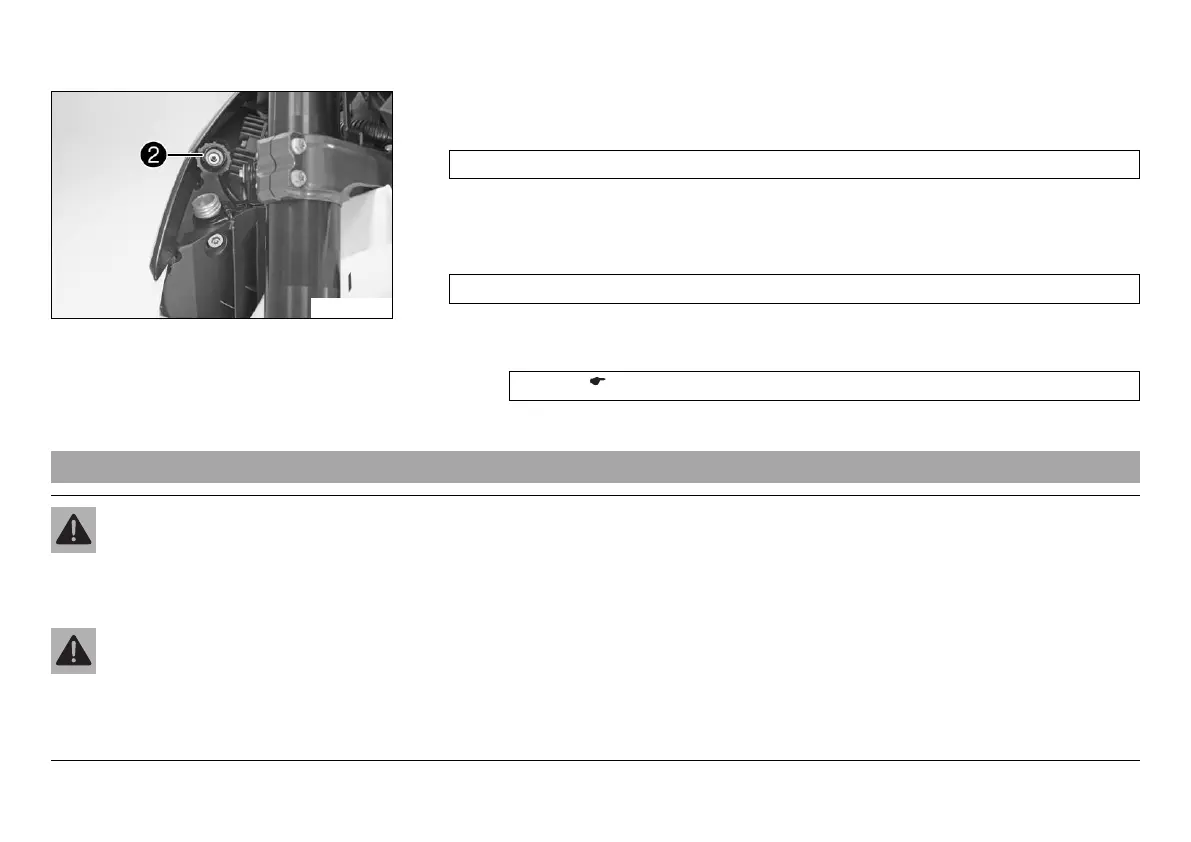

Screw off the radiator cap

.
– Check antifreeze of coolant.
−25… −45 °C (−13… −49 °F)
» If the antifreeze of the coolant does not meet specifications:
– Correct the antifreeze of the coolant.
– Check the coolant level in the radiator.
The radiator must be completely filled.
» If the coolant level does not meet specifications:
– Correct the coolant level and find out the cause of the loss.
Coolant ( p. 183)
– Mount the radiator cap.
15.3 Checking the coolant level
Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water immedi-
ately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, con-
tact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of children.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
