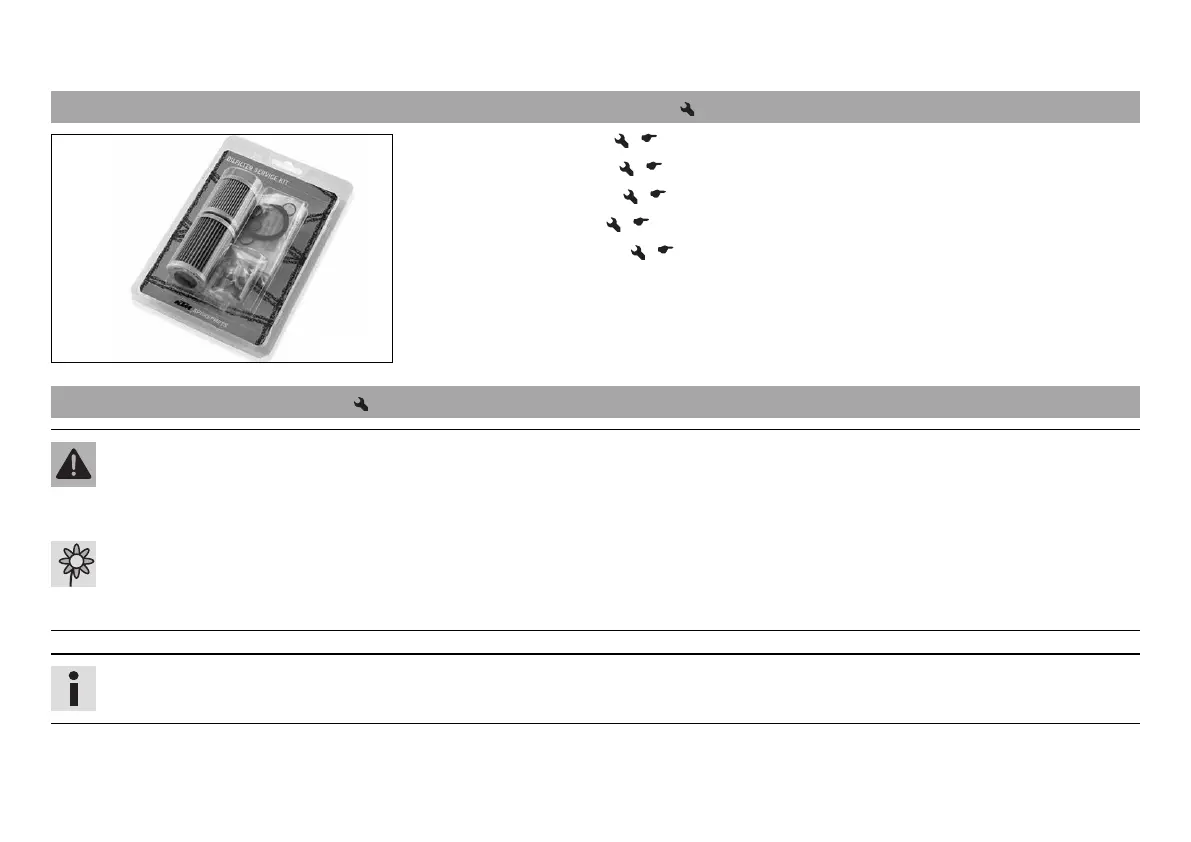

17 SERVICE WORK ON THE ENGINE 145
17.2 Changing the engine oil and filter, cleaning the oil screens
601022-10
Drain the engine oil. ( p. 145)
Remove the oil filter. ( p. 146)
Clean the oil screens. ( p. 148)
Install the oil filter. ( p. 150)
Fill up with engine oil. ( p. 150)
17.3 Draining the engine oil
Warning
Danger of scaldingEngine oil and gear oil get very hot when the motorcycle is ridden.
Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazardHazardous substances cause environmental damage.
Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the engine oil while the engine is at operating temperature.
