10 TUNING THE CHASSIS 68

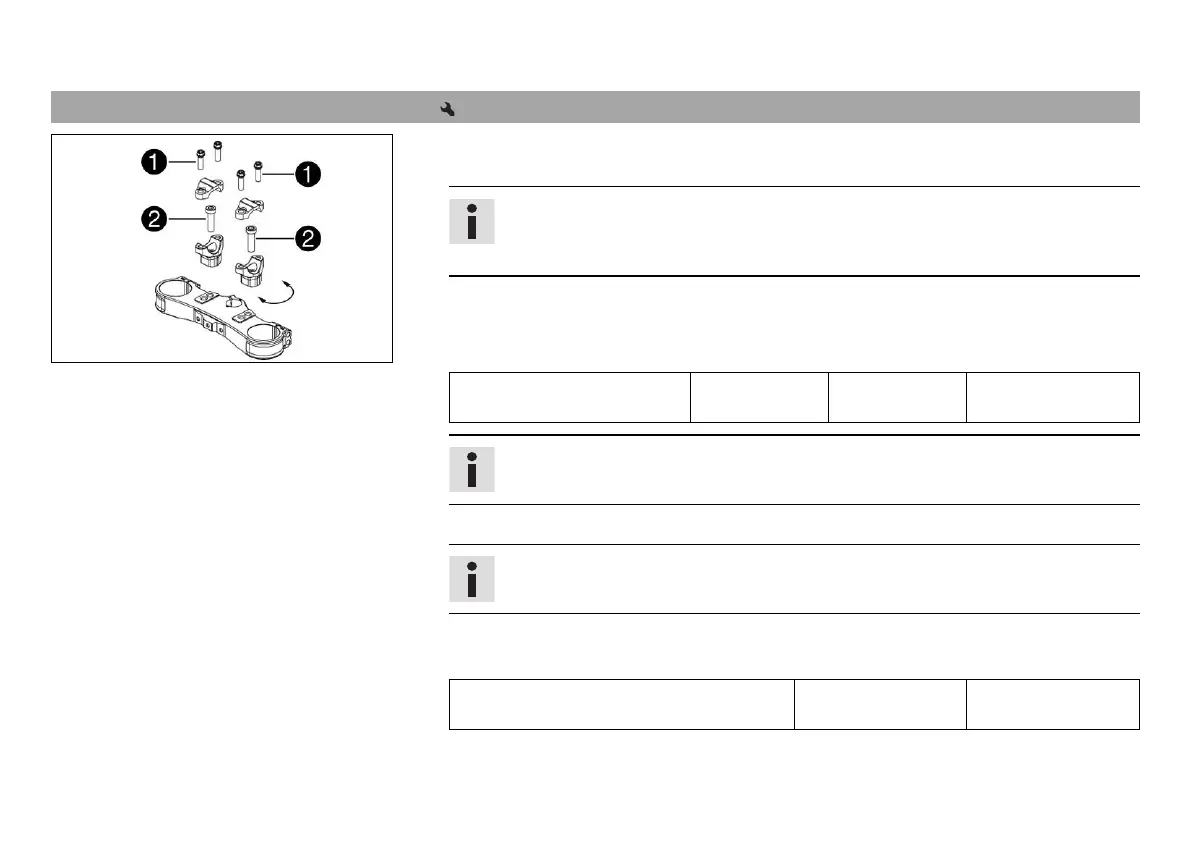

10.9 Adjusting the handlebar position
601875-10
Remove screws
. Take off the handlebar clamps. Remove the handlebar and lay it to
one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
Remove screws
. Remove the handlebar support.
Place the handlebar support in the required position. Mount and tighten screws
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
Position the handlebar clamps. Mount screws
and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
