KTM 690 SMC R User Manual

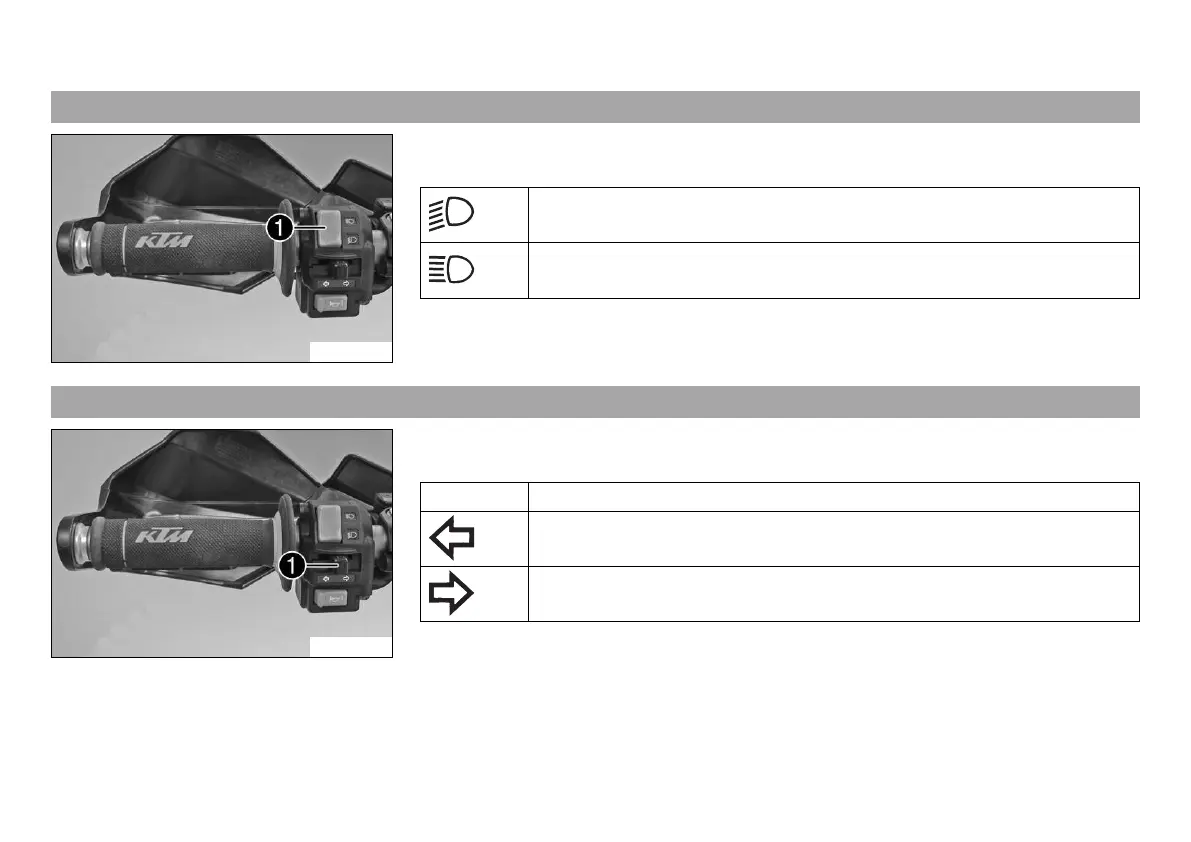

6 CONTROLS 25
6.5 Light switch
B01946-11
The light switch

is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is turned downward. In this position, the low
beam and tail light are switched on.
High beam on – Light switch is turned upward. In this position, the high
beam and tail light are switched on.
6.6 Turn signal switch
B01946-12
The turn signal switch

is fitted on the left side of the handlebar.
Possible states
Turn signal off
Turn signal light, left, on – Turn signal switch pressed to the left. The turn
signal switch returns automatically to the central position after use.
Turn signal light, right, on – Turn signal switch pressed to the right. The
turn signal switch returns automatically to the central position after use.
To switch off the turn signal light, press the turn signal switch towards the switch case.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
