KTM 690 SMC R User Manual

11 SERVICE WORK ON THE CHASSIS 71
11.4 Removing the rear of the motorcycle from the wheel stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
401943-10
– Secure the motorcycle against falling over.
–

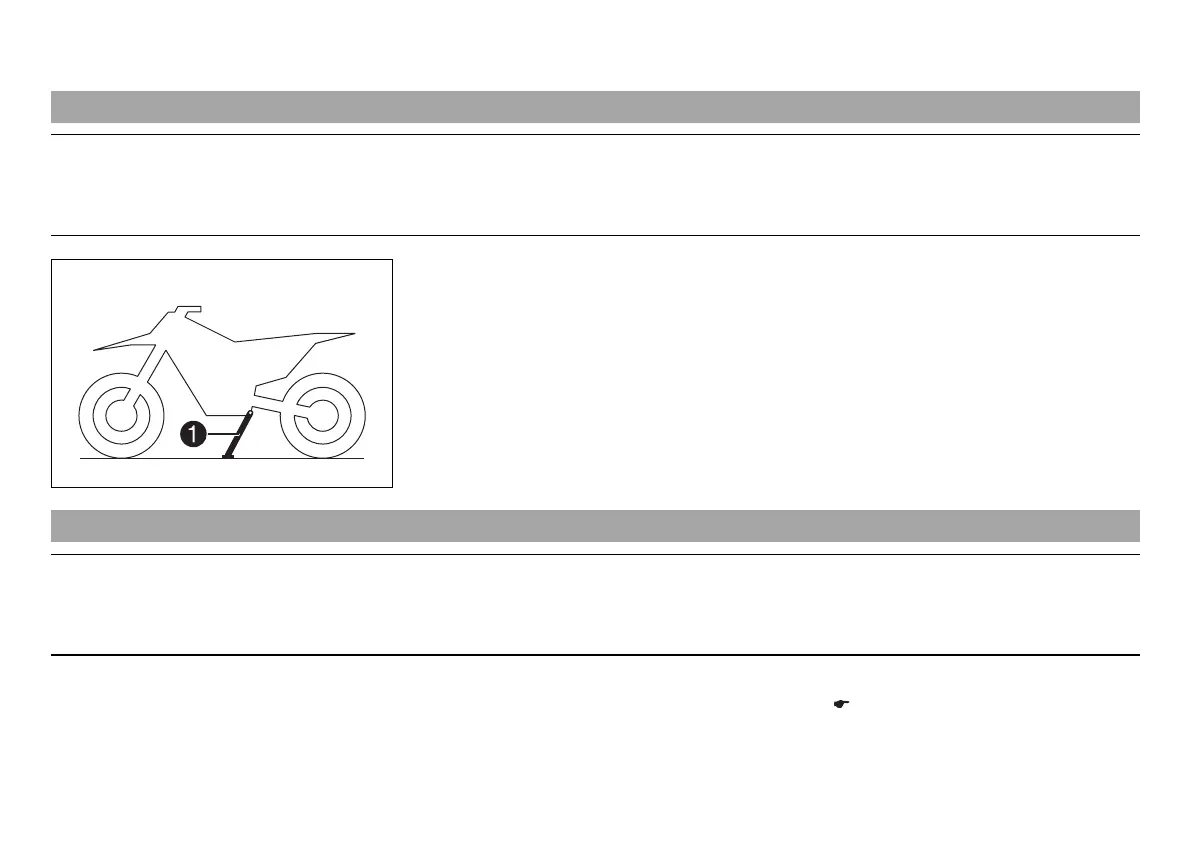

Remove the rear wheel stand and lean the vehicle on side stand

.
11.5 Raising the motorcycle with the front wheel stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 70)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
