KTM 690 SMC R User Manual

11 SERVICE WORK ON THE CHASSIS 77

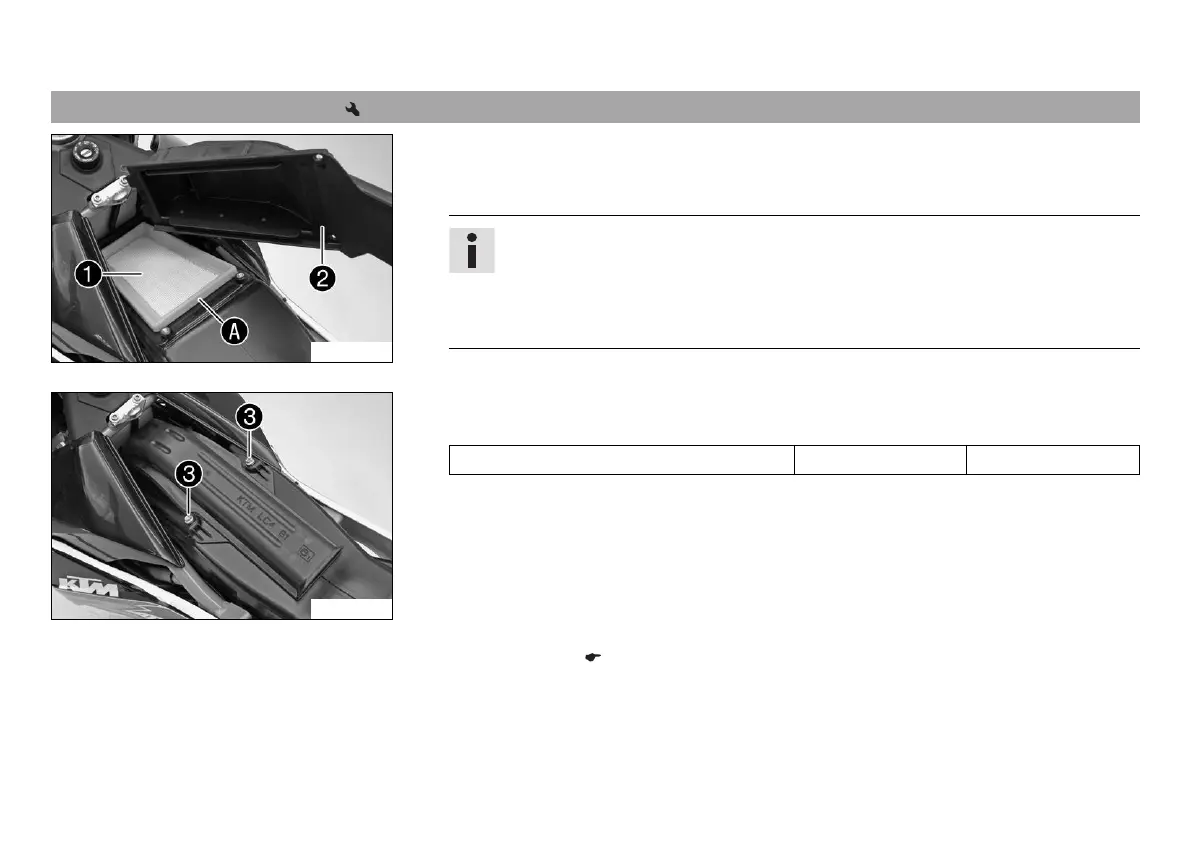

11.13 Installing the air filter
601881-10
Main work
– Clean the air filter box.
–
Mount air filter

.
Info
The air filter must lie flush against the air filter box along the entire sealing sur-
face

.
If the air filter is not correctly mounted, dust and dirt can enter the engine and
cause damage.
–
Hook air filter box top

into the front of the air filter box and swing down.
601882-11
–
Mount and tighten screws

.
Guideline
Screw, air filter box top M6 2 Nm (1.5 lbf ft)
Finishing work
– Mount the seat. ( p. 75)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
