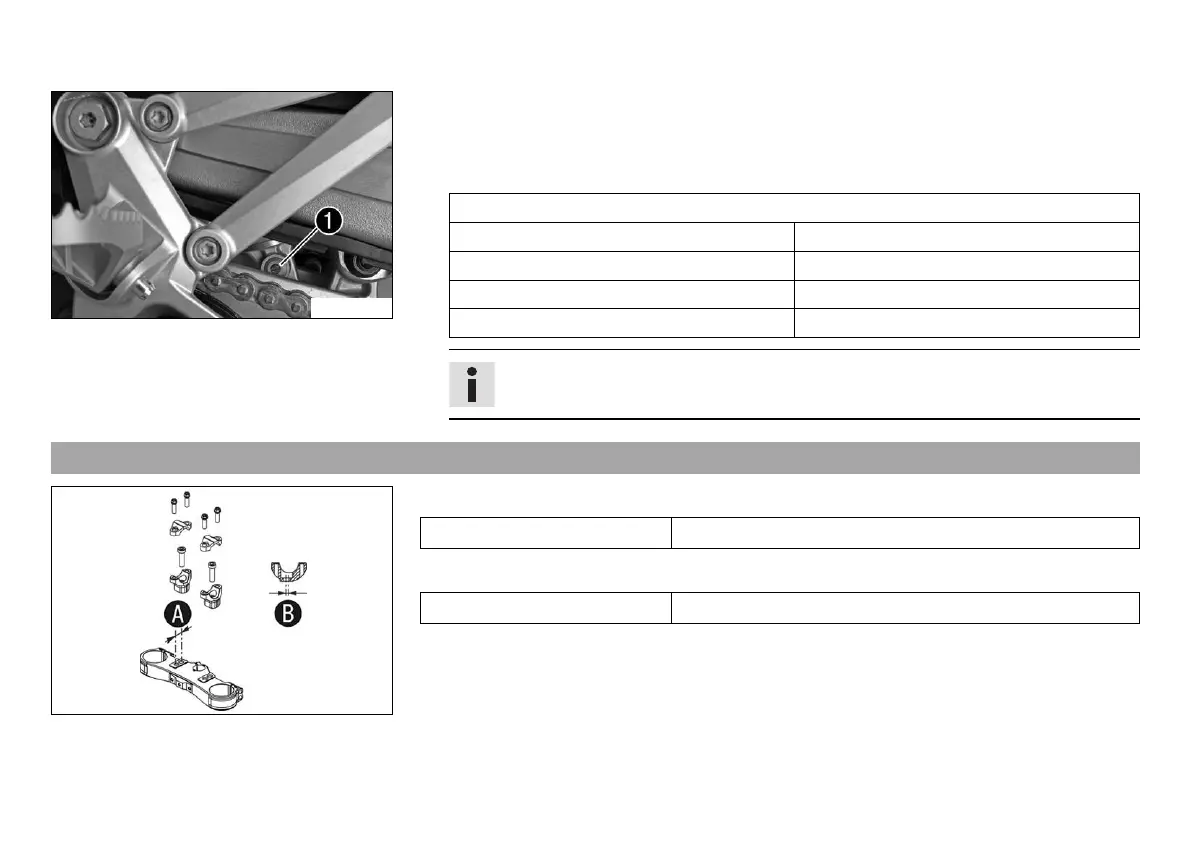

10 TUNING THE CHASSIS 67
601891-10
Turn adjusting screw
clockwise up to the last perceptible click.
Turn counterclockwise by the number of clicks corresponding to the shock absorber
type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
10.8 Handlebar position
601874-10
On the upper triple clamp, there are two holes at a distance of
to each other.
Hole distance
15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of
from the center.
Hole distance
3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can be
mounted in the most comfortable position for the rider.
