KTM 690 SMC R User Manual

11 SERVICE WORK ON THE CHASSIS 74

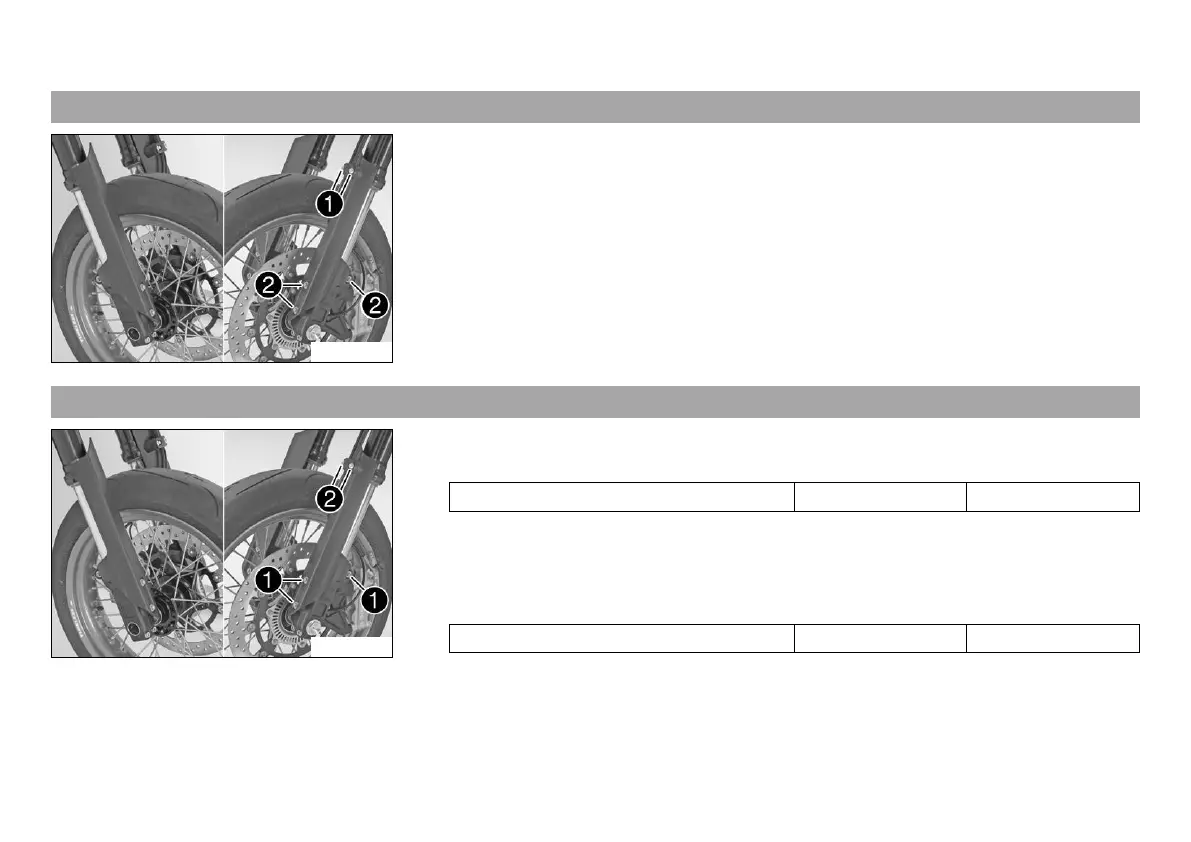

11.8 Removing the fork protector
101986-10
–
Remove screws

and take off clamp.
–
Remove screws

on left fork leg. Remove the fork protector.
– Remove the screws on the right fork leg. Remove the fork protector.
11.9 Installing the fork protector
101986-11
–
Position the fork protection on the left fork leg. Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line and cable harness. Put the clamp on, mount and tighten
screws

.
– Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
