14 ELECTRICAL SYSTEM 131
14.11 Changing the turn signal bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease before
mounting.
100160-10
Main work

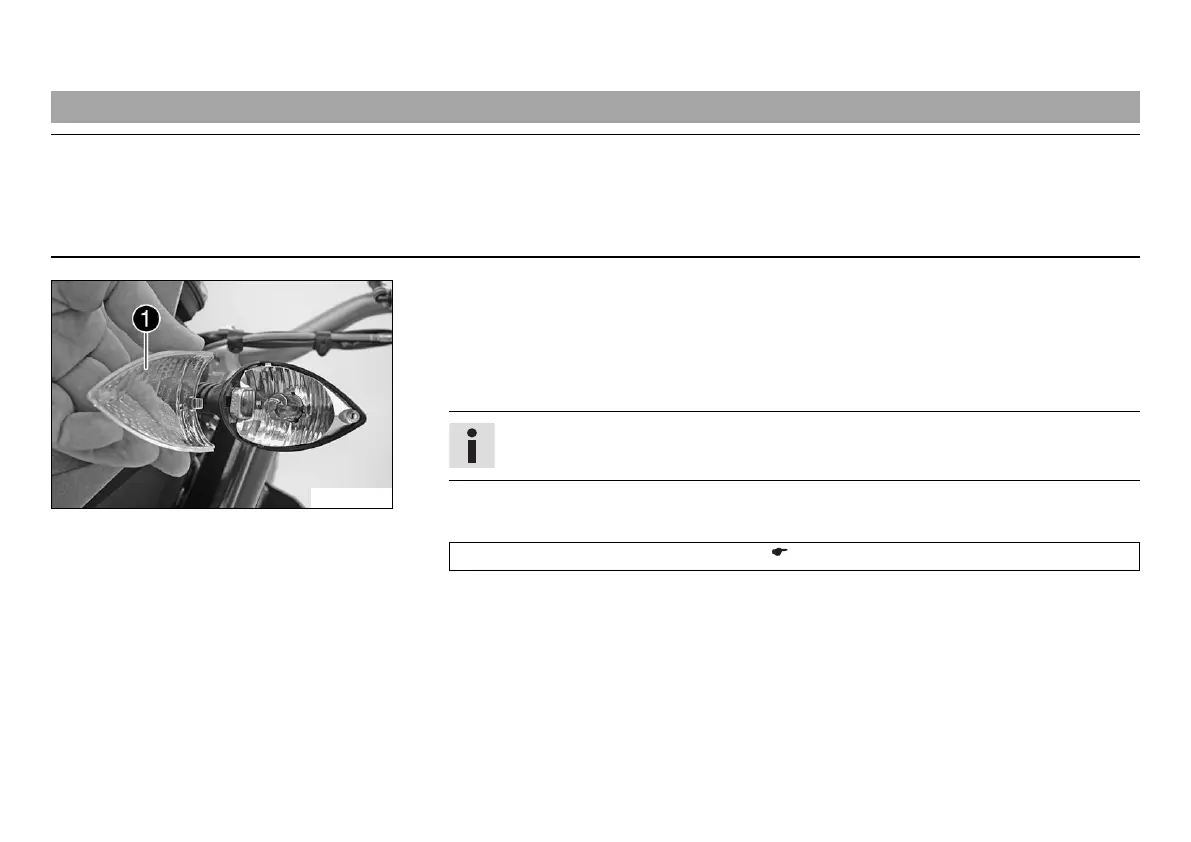

– Remove the screw on the rear of the turn signal housing.
–
Tilt headlamp diffuser

forward carefully and take it off.
– Press the turn signal bulb lightly into the socket, turn it counterclockwise by about 30°,
and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until it
stops.
Turn signal (RY10W / socket BAU15s) ( p. 176)
– Position the diffuser.
– Insert the screw and first turn counterclockwise until it engages in the thread with a
small jerk. Tighten the screw lightly.
Finishing work
– Check that the turn signal system is functioning properly.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
