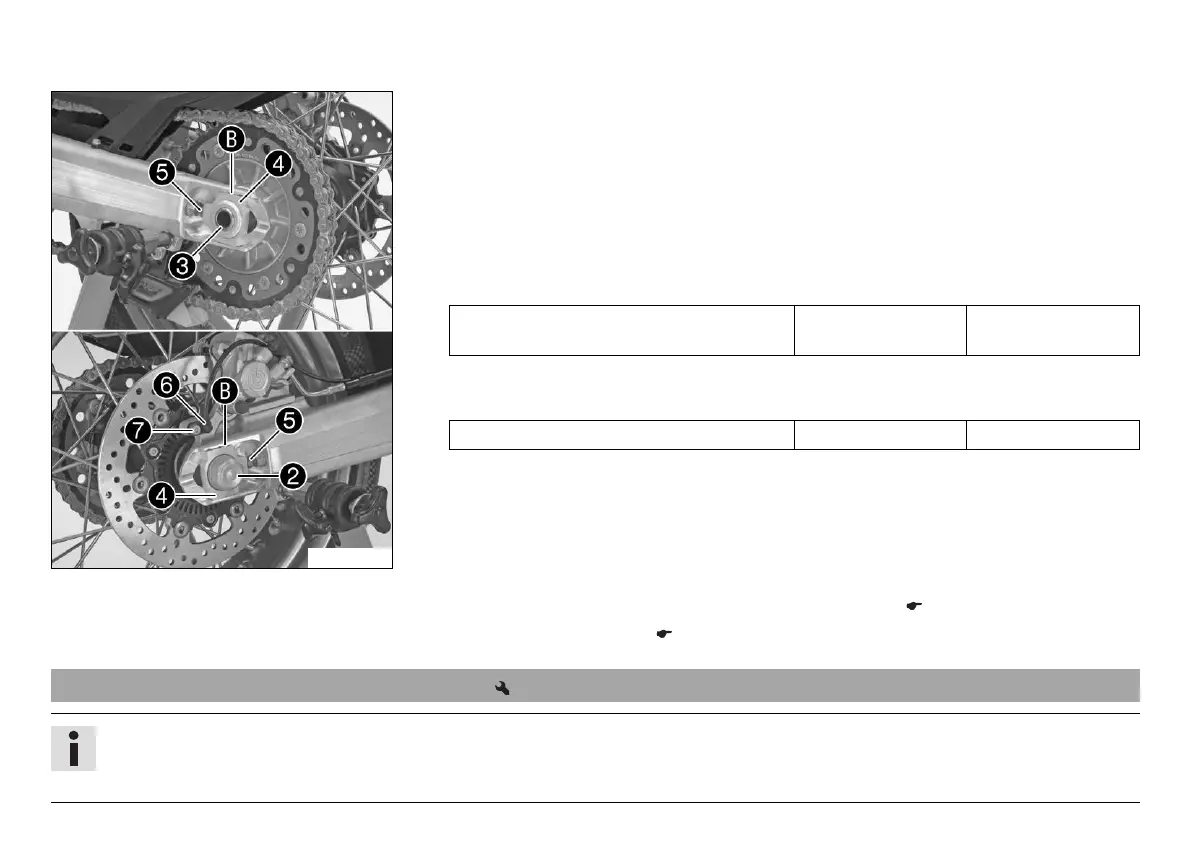

13 WHEELS, TIRES 106
M01388-10
Push the rear wheel forward as far as possible and lay the chain on the rear sprocket.
Mount wheel spindle
and chain adjuster
. Mount nut
, but do not tighten it
yet.
Make sure that chain adjusters
are fitted correctly on adjusting screws
.
Make sure that the markings on the left and right chain adjusters are in the same posi-
tion relative to reference marks
. The rear wheel is then correctly aligned.
Tighten nut
.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
Position the wheel speed sensor
in the drill hole. Mount and tighten screw
.
Guideline
Screw, wheel speed sensor M6 6 Nm (4.4 lbf ft)
Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
Finishing work
Remove the rear of the motorcycle from the wheel stand. ( p. 71)
Check the chain tension. ( p. 79)
13.5 Checking the rear hub rubber dampers
Info
The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. They eventually wear out during
operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub become damaged.
