13 WHEELS, TIRES 105
Main work
Check the rear hub rubber dampers. ( p. 106)
H00937-11
Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
Replace the wheel bearing.

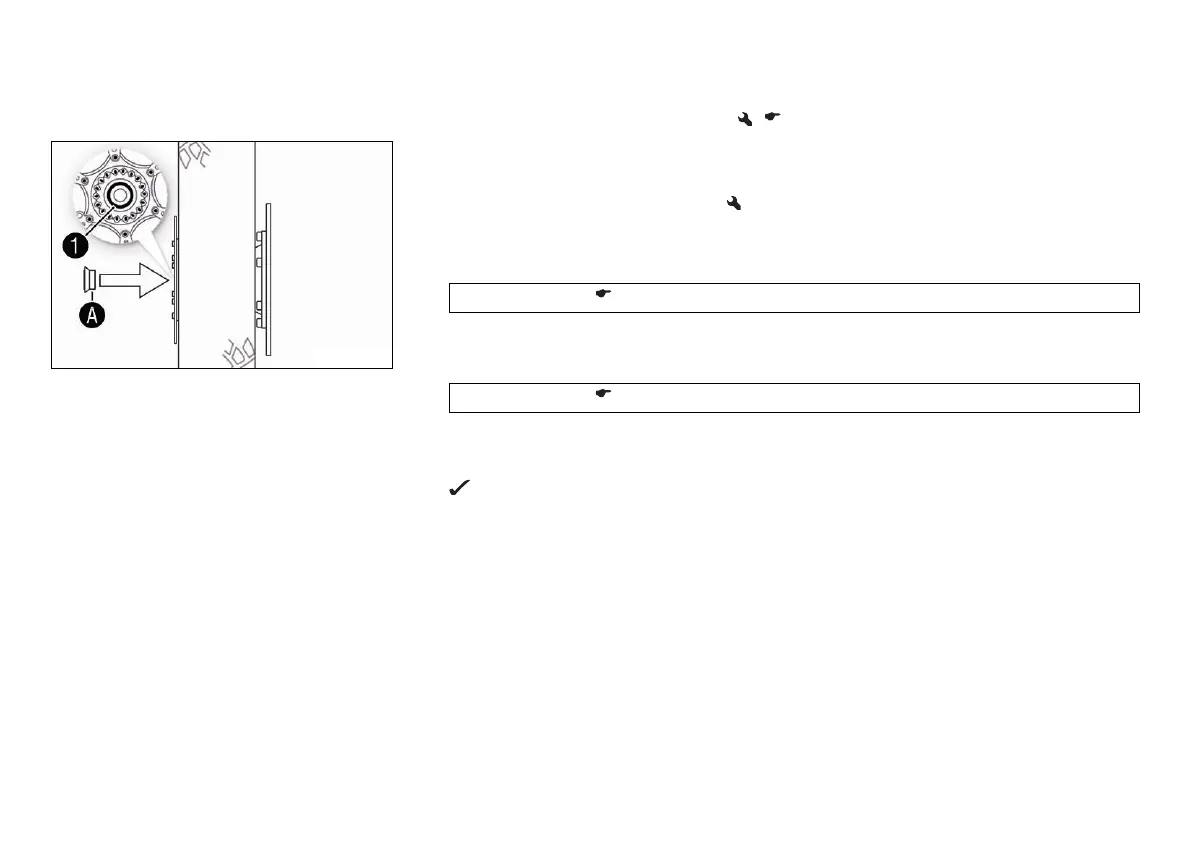

Remove spacer.
Clean and grease shaft seal ring
and contact surface
of the spacer.
Long-life grease ( p. 186)
Insert the spacer.
Clean and grease the thread of the wheel spindle and nut
.
Long-life grease ( p. 186)
Mount the rubber damper and rear sprocket carrier in the rear wheel.
Position the rear wheel.
The brake linings are correctly positioned.
