KTM 690 SMC R User Manual

12 BRAKE SYSTEM 90

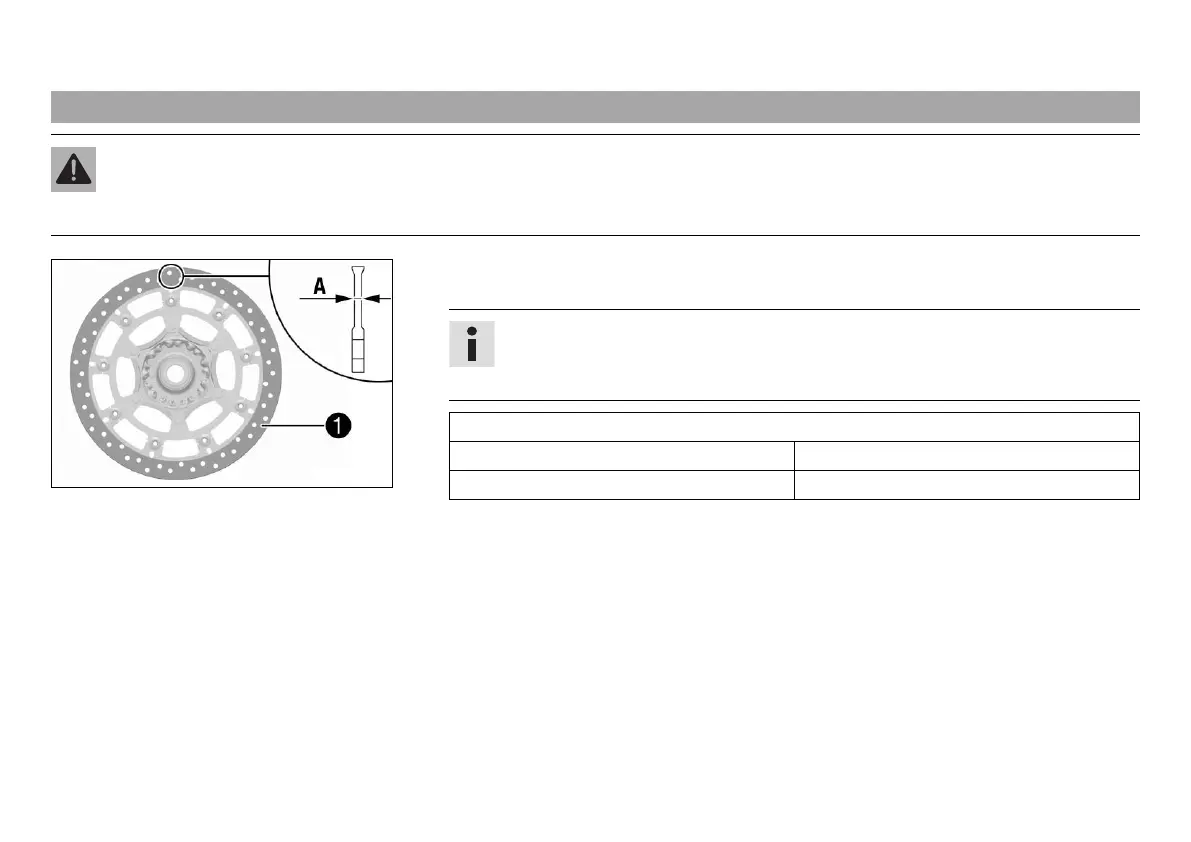

12.3 Checking the brake discs
Warning
Danger of accidents Reduced braking efficiency due to worn brake disc(s).
– Change the worn brake disc(s) without delay. (Your authorized KTM workshop will be glad to help.)
100135-10
– Check the thickness of the front and rear brake discs in several places to ensure that it
conforms to measurement

.
Info
Wear reduces the thickness of the brake disc at the contact surface

of the
brake disc.
Brake discs - wear limit
Front 4.0 mm (0.157 in)
Rear 4.5 mm (0.177 in)
» If the brake disc thickness is less than the specified value:
– Replace the brake disc.
– Check the front and rear brake discs for damage, cracks, and deformation.
» If damage, cracks, or deformation are visible on the brake disc:
– Replace the brake disc.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
