KTM 690 SMC R User Manual

17 SERVICE WORK ON THE ENGINE 144

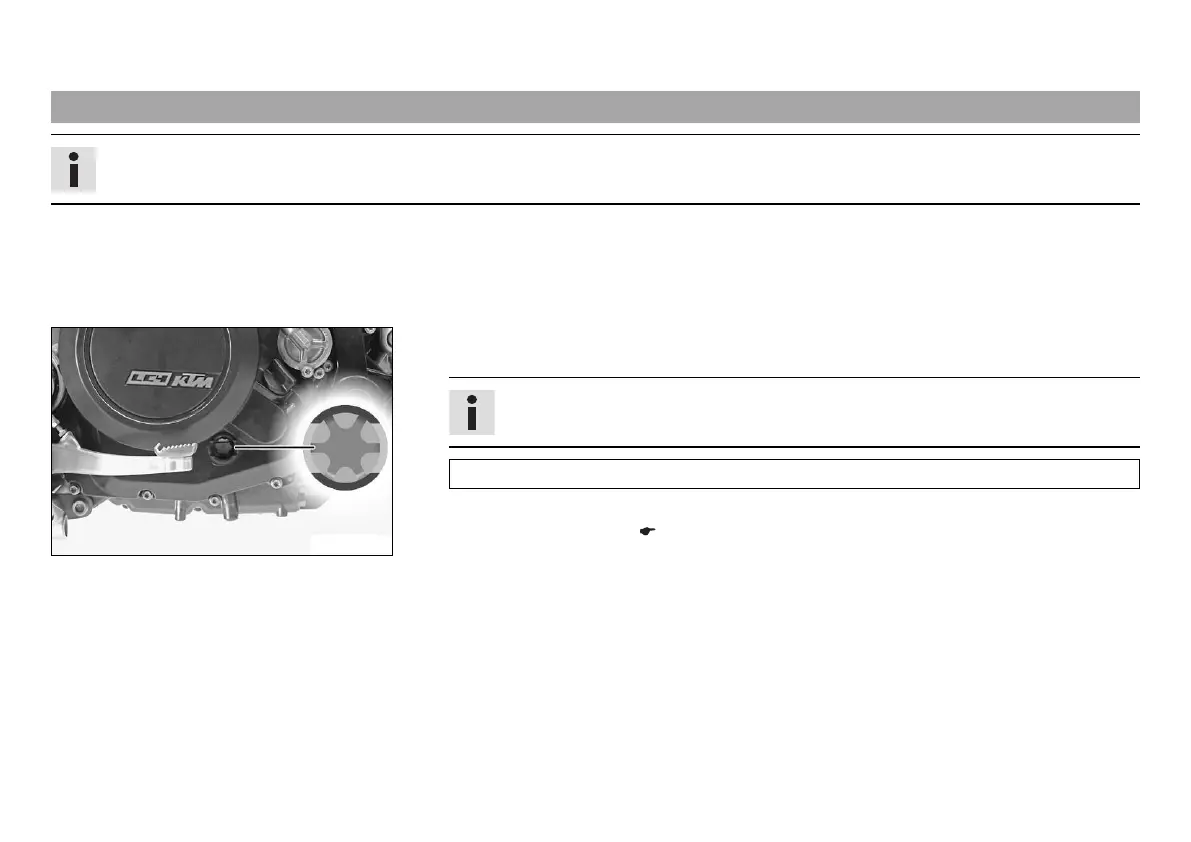

17.1 Checking the engine oil level
Info
The engine oil level must be checked when the engine is warm.
Condition
The engine is at operating temperature.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
C00182-10
Main work
– Check the engine oil level.
Info
After switching off the engine, wait one minute before checking the level.
The engine oil must be between the lower and upper edge of the oil level viewer.
» If the engine oil level is not at the specified level:
– Add engine oil. ( p. 151)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
