6 CONTROLS 36

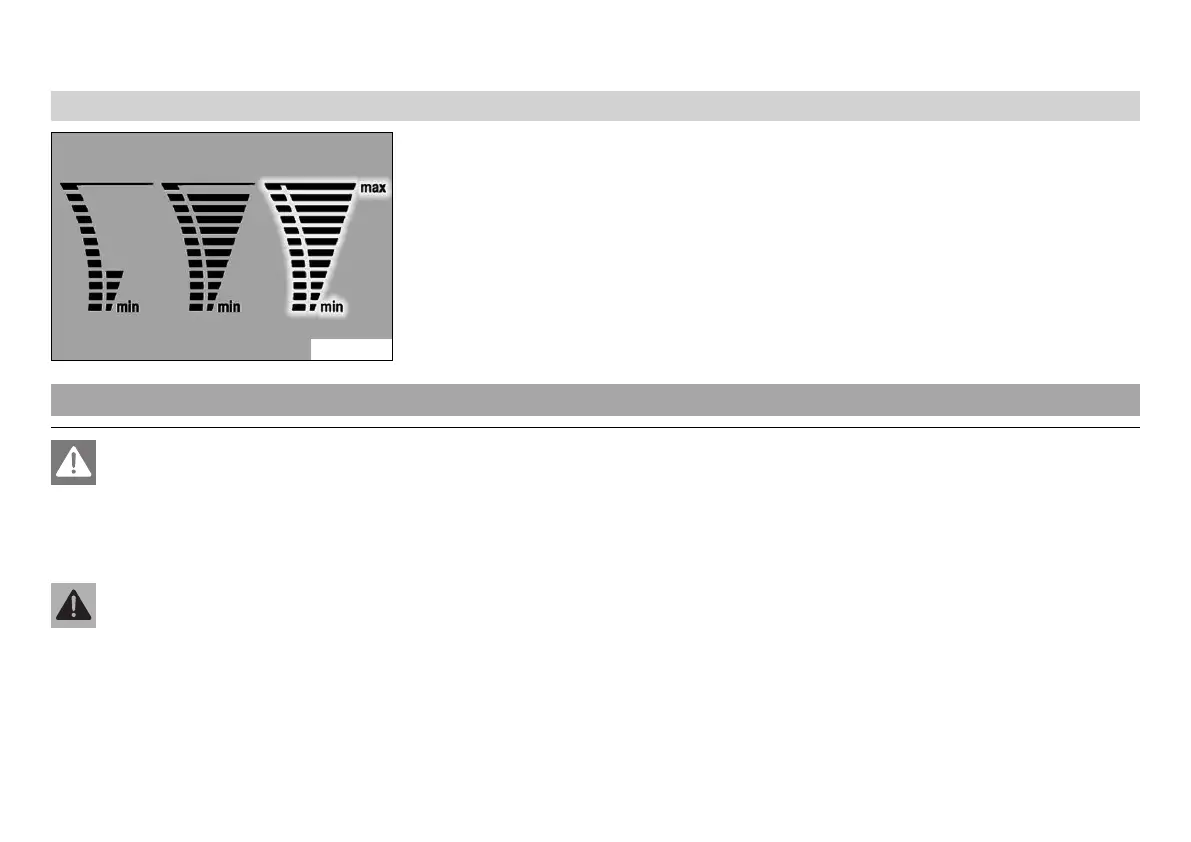

6.10.15 Coolant temperature indicator
700124-01
The temperature display consists of 12 bars. The more bars that light up, the hotter the
coolant. When the upper bar lights up, all bars in the display begin to flash and the temper-
ature warning lamp lights up.
Possible states
Engine cold Up to four bars light up.
Engine warm Five to eleven bars light up.
Engine hot All twelve bars flash.
6.11 Opening the filler cap
Danger
Fire hazardFuel is highly flammable.
Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is
spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoningFuel is poisonous and a health hazard.
Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and
water. If fuel is swallowed, contact a physician immediately. Change clothing that has been contaminated with fuel. Store fuel
properly in a suitable canister and keep away from children.
