14 ELECTRICAL SYSTEM 115

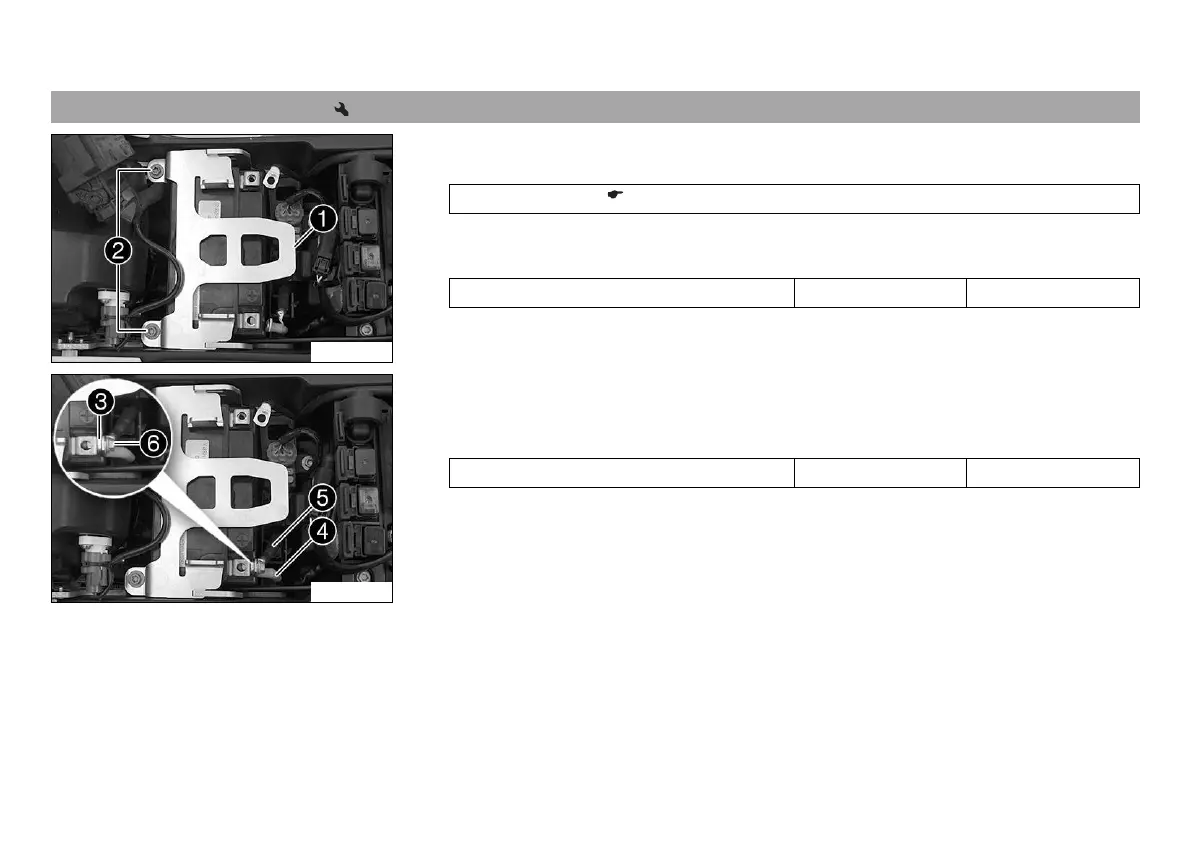

14.2 Installing the battery
S00621-11
Main work
Insert the battery into the battery compartment with the terminals facing rearward.
Battery (YTZ10S) ( p. 175)
Position retaining bracket
and mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S00623-10
Position washer
, positive cable
, and ABS connection cable
.
Mount and tighten screw
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
