6 CONTROLS 26

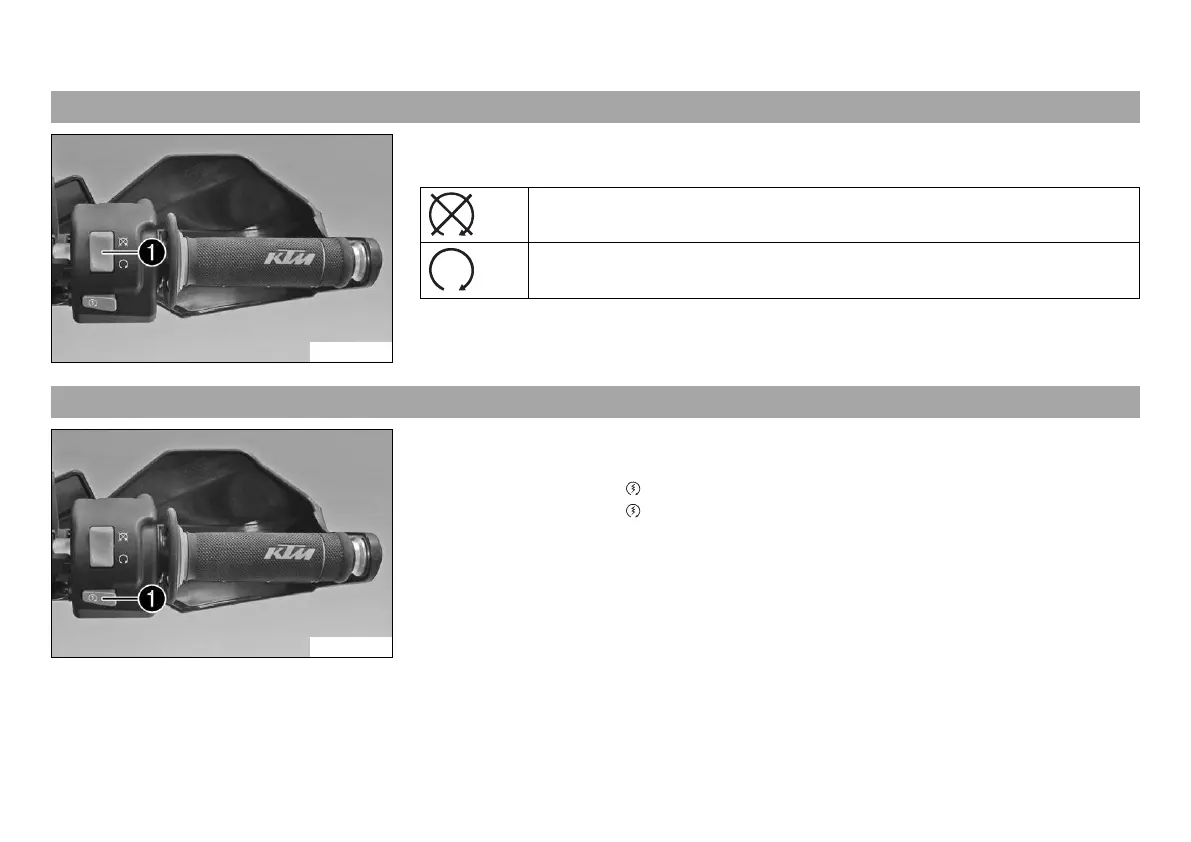

6.7 Emergency OFF switch
B01947-10
The emergency OFF switch
is fitted on the right side of the handlebar.
Possible states
Emergency OFF switch off In this position, the ignition circuit is inter-
rupted, a running engine stops, and the engine cannot be started.
Emergency OFF switch on This position is necessary for operation as the
ignition circuit is closed.
6.8 Electric starter button
B01947-11
The electric starter button
is fitted on the right side of the handlebar.
Possible states
Electric starter button in basic position
Electric starter button pressed In this position, the electric starter is actuated.
