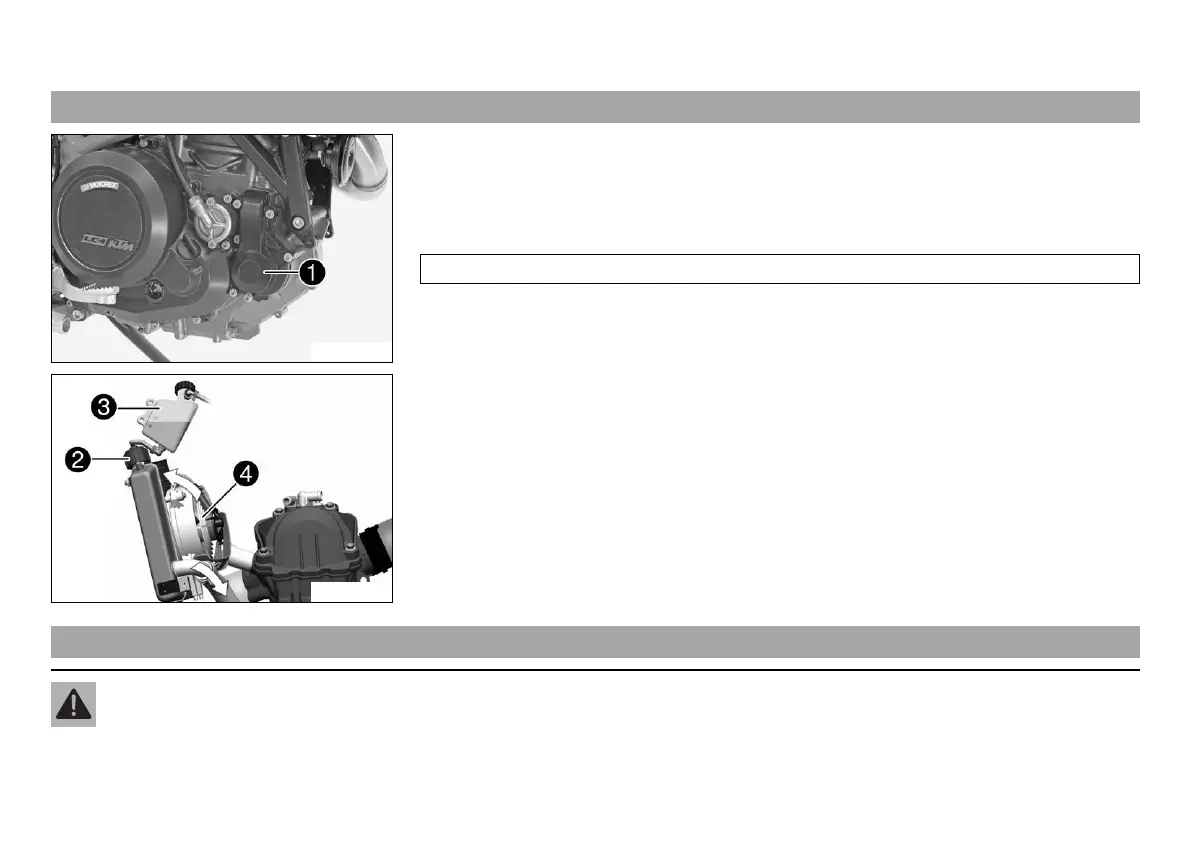

15 COOLING SYSTEM 134
15.1 Cooling system
102013-10
The water pump
in the engine forces the coolant to flow.
The pressure in the cooling system resulting from heat is regulated by a valve in the radia-
tor cap
. The heat expansion causes the surplus coolant to flow into the compensating
tank
. When the temperature falls, this surplus coolant is sucked back into the cooling
system. This permits the specified coolant temperature without causing any malfunctions.
125 °C (257 °F)
400407-10
Cooling takes place by means of the air stream and a radiator fan
, which is controlled
by a thermoswitch.
The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the cooling
effect.
15.2 Checking the antifreeze and coolant level
Warning
Danger of scaldingDuring motorcycle operation, the coolant gets very hot and is under pressure.
Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.

Table of Contents

Other manuals for KTM 690 SMC R

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 690 SMC R and is the answer not in the manual?

KTM 690 SMC R Specifications

General IconGeneral
Engine TypeSingle-cylinder, 4-stroke
Bore x Stroke105 mm x 80 mm
Compression Ratio12.7:1
StarterElectric starter
Transmission6-speed
Fuel SystemElectronic Fuel Injection
Cooling SystemLiquid cooled
FrameChromium-Molybdenum steel trellis frame, powder coated
Front Wheel3.50 x 17"
Rear Wheel5.00 x 17"
Front Tire120/70 ZR 17
Rear Tire160/60 ZR 17
Seat Height890 mm
Power55 kW (74 hp)
Torque73.5 Nm
Front SuspensionWP APEX 48
Rear SuspensionWP APEX with Pro-Lever linkage
Front BrakeSingle 320 mm disc, 4-piston caliper
Rear BrakeSingle 240 mm disc, 1-piston caliper
ABSBosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity13.5 liters
Dry Weight147 kg
