KTM 690 SMC R User Manual

14 ELECTRICAL SYSTEM 133
102024-10
Main work
–

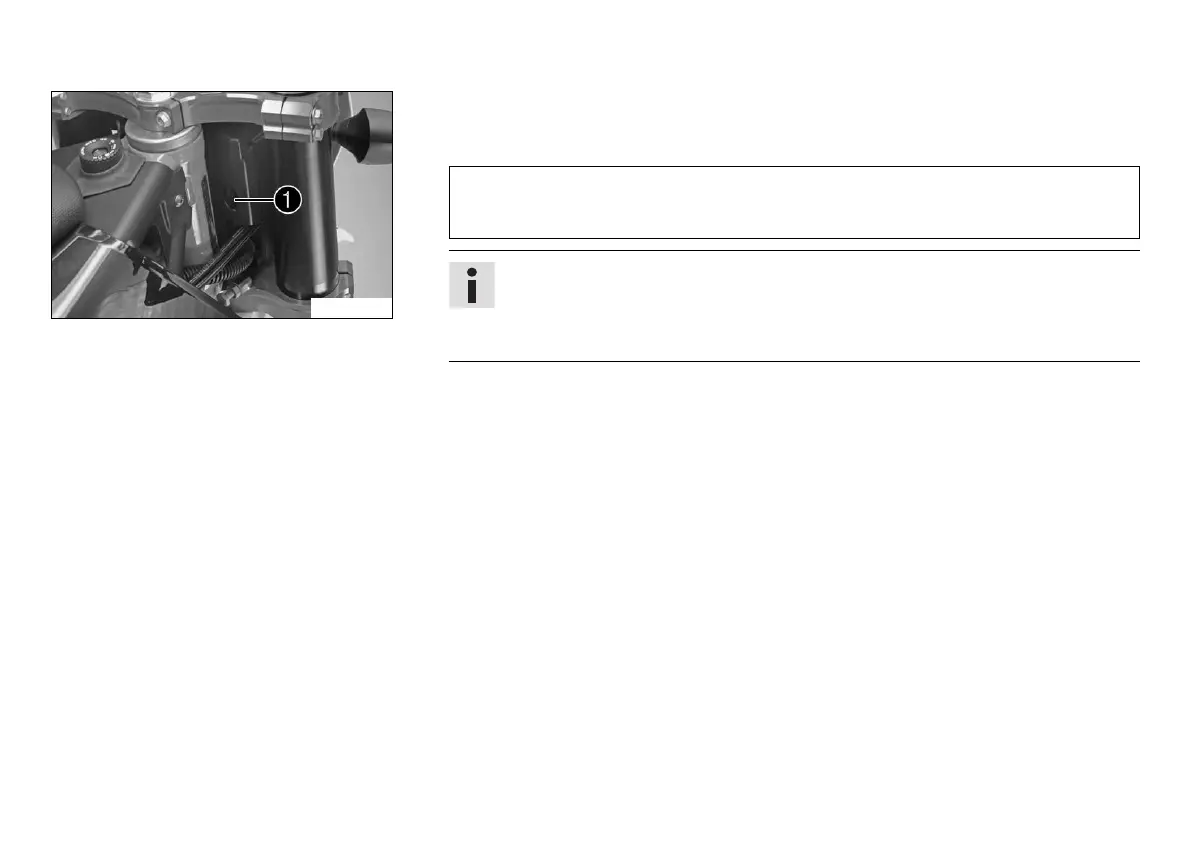

Turn adjusting screw

to adjust the headlight range.
Guideline
The boundary between light and dark must be exactly on the lower mark for a motor-
cycle with a rider (instructions on how to apply the mark: Checking the headlight set-
ting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
If you have a heavy payload, you will need to correct the headlight range.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
