KTM 690 SMC R User Manual

15 COOLING SYSTEM 135
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water immedi-
ately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, con-
tact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of children.
Condition
Engine is cold.
102014-10
– Stand the motorcycle on its side stand on a horizontal surface.
–

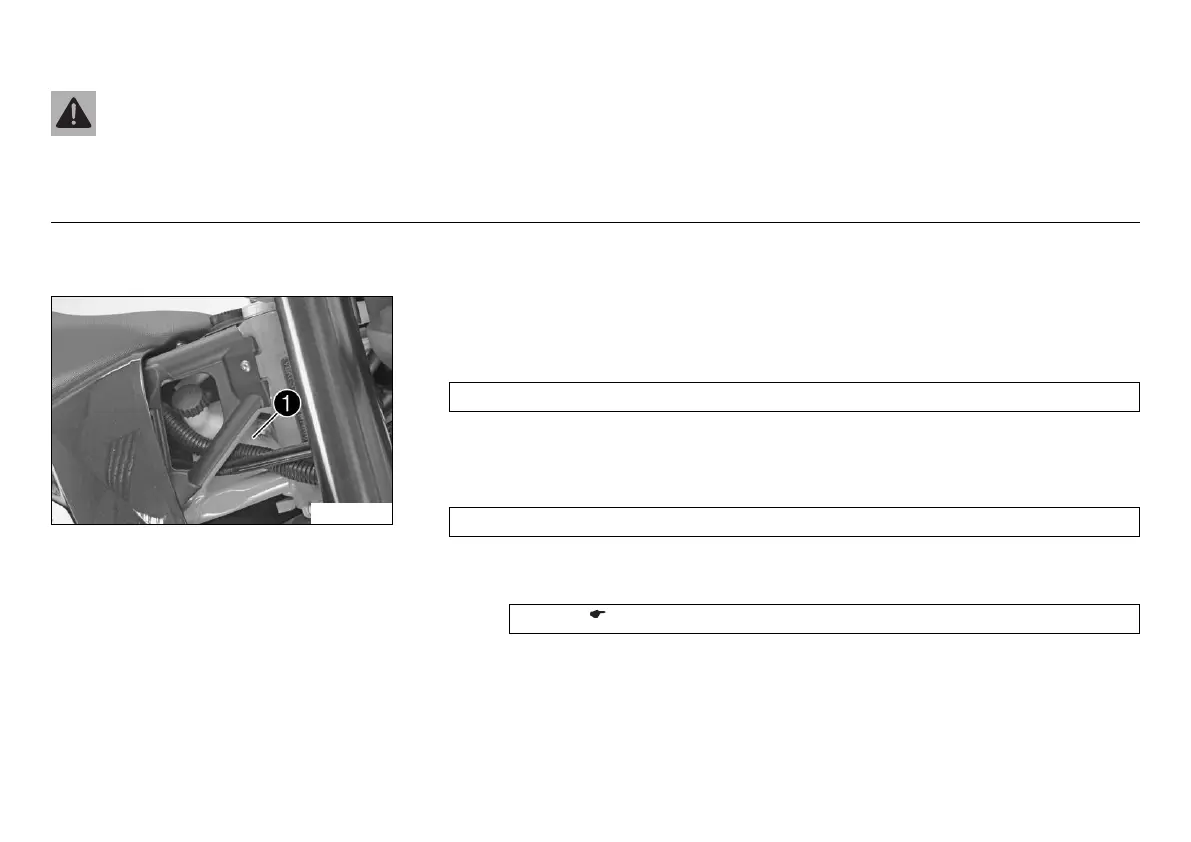

Remove the cap of compensating tank

.
– Check antifreeze of coolant.
−25… −45 °C (−13… −49 °F)
» If the antifreeze of the coolant does not meet specifications:
– Correct the antifreeze of the coolant.
– Check the coolant level in the compensating tank.
The coolant level must be within the range shown in the figure.
» If the coolant level does not meet specifications:
– Correct the coolant level.
Coolant ( p. 183)
– Mount the cap of the compensating tank.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
