KTM 690 SMC R User Manual

14 ELECTRICAL SYSTEM 124
102008-10

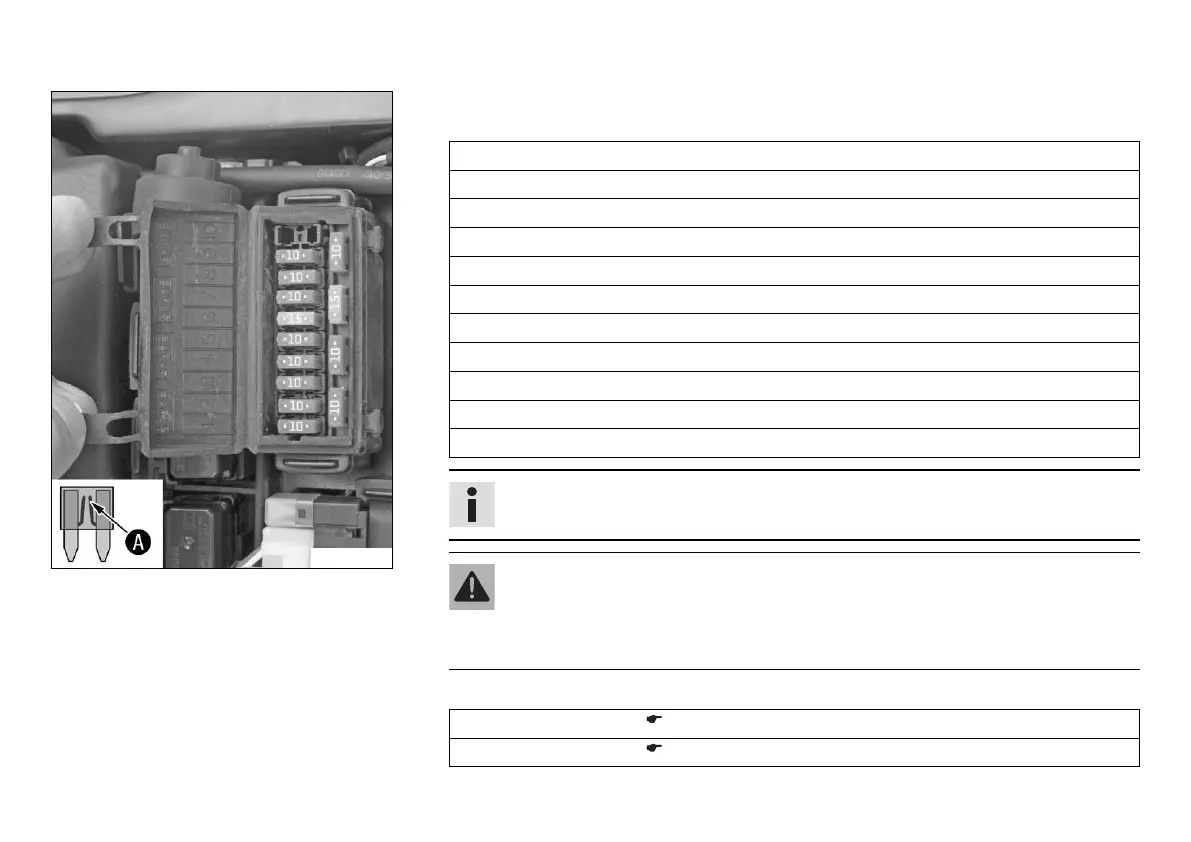

– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - ignition, combination instrument, clock, EFI control unit
Fuse 2 - 10 A - ignition, combination instrument, EFI control unit
Fuse 3 - 10 A - fuel pump
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - horn, brake light, turn signal
Fuse 6 - 15 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 7 - 10 A - for auxiliary equipment (permanent positive)
Fuse 8 - 10 A - for auxiliary equipment (accessories connected with ignition switch)
Fuse 9 - 10 A - ABS
Fuse 10 - not assigned
Fuse SPARE - 10 A/15 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire

.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never bypass or repair fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 176)
Fuse (75011088015) ( p. 175)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
