KTM 690 SMC R User Manual

11 SERVICE WORK ON THE CHASSIS 80
100249-10
– Lean the motorcycle on the side stand.
– Shift gear to neutral.
–

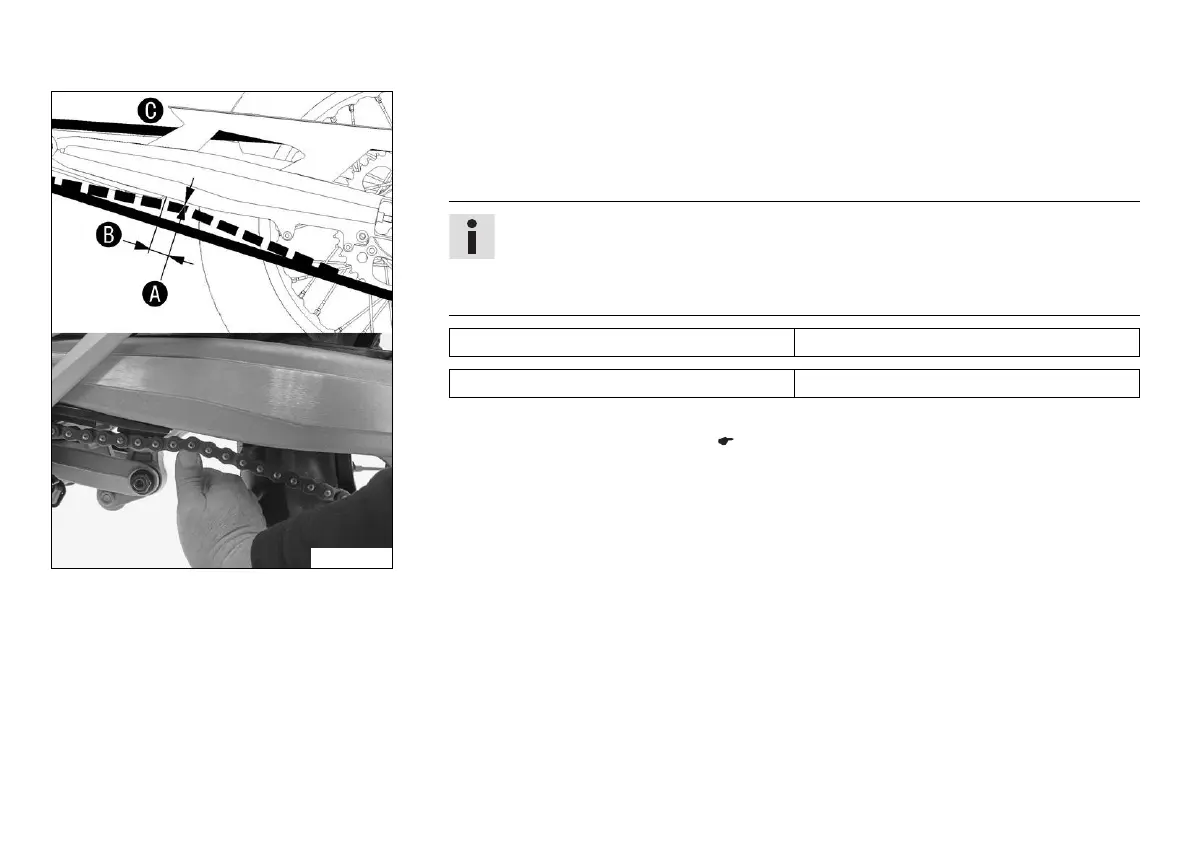

Push the chain upward at a distance

from the chain sliding guard and determine
the chain tension

.
Info
The upper chain section

must be taut.
Chain wear is not always even. Repeat this measurement at different chain posi-
tions.
Chain tension 5 mm (0.2 in)
Distance to chain sliding guard 30 mm (1.18 in)
» If the chain tension does not meet specifications:
– Adjust the chain tension. ( p. 81)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
