COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M9

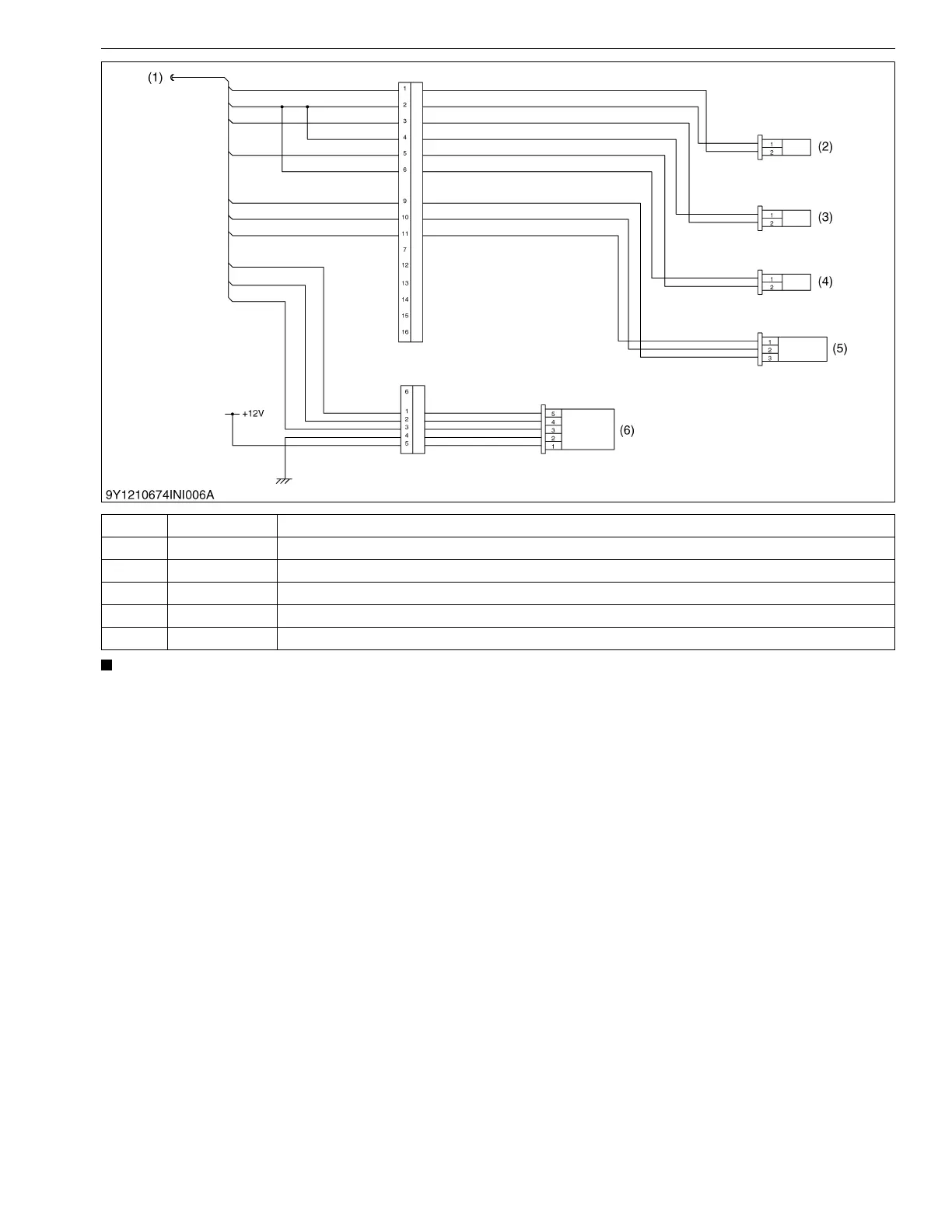

NOTE
• The picture shows the pin arrangement of the connector housing viewed from wire side, not mating side.
9Y3200007CRM0009US0
(1) − DPF
(2) CN101 Exhaust Gas Temperature Sensor (T
2
)
(3) CN102 Exhaust Gas Temperature Sensor (T
1
)
(4) CN103 Exhaust Gas Temperature Sensor (T
0
)
(5) CN104 Differential Pressure Sensor (ΔP)
(6) CN105 Air Flow Sensor
KiSC issued 03, 2022 A
